| Specifications | |||
| Info | |||
| Product | Standard (UHD) | Year | Y24 |
| Month | M10 | ||
| Panel | |||
| Screen Size (Inch) | 86 | Panel Technology | IPS |
| Back Light Type | Edge | Aspect Ratio | 16:09 |
| Native Resolution | 3840 x 2160 (UHD) | Refresh Rate | 120Hz |
| Brightness | 500nit (Typ.) | Contrast Ratio | 1,200:1 |
| Dynamic CR | 1,000,000:1 | Color gamut | BT709 95% |
| Viewing Angle(H x V) | 178 X 178 | Color Depth (Number of Colors) | 8bit(D), 1.07Billion colors |
| Response Time | 8m (G to G) | Surface Treatment (Haze) | 25% |
| Life time | 50,000Hrs (Min.) | Operation Hours (Hours/Day) | 24/7 |
| Portait / Landscape | Yes / Yes | ||
| Connectivity (Jack Interface) | |||
| HDMI IN | Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4 | DP IN | Yes(1), 3840x2160@60Hz, HDCP2.2/1.3 |
| RS232C IN | Yes (1), 4pin Phone-jack | RJ45(LAN) IN | Yes (1) |

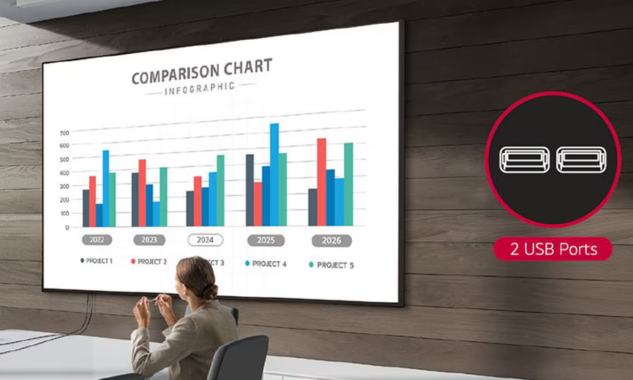

| IR IN | Yes (1) | USB IN | USB2.0 Type A(2) |
| Audio Out | Yes (1) | RS232C Out | Yes (1), 4pin Phone-jack |
| IR Out | No (Support IR daisy chain via RS232C IN/OUT) | ||
| Mechanical | |||
| Bezel Color | Black | Bezel Width | T/R/L: 8.9mm, B: 12.9mm |
| Weight (Head) | 24.2 kg | Packed Weight | 30.4 kg |
| Monitor Dimensions (W x H x D) | 1450.3 x 830.3 x 29.7mm (Without IR) | Carton Dimensions (W x H x D) | 1600.0 x 970.0 x 172.0mm |
| VESATM Standard Mount Interface | 300 x 300 | ||
| HW Feature | |||
| Internal Memory (eMMC) | 16GB | Wi-Fi/BT (Built-in) | Yes |
| Temperature Sensor | Yes | Auto Brightness sensor | Yes(IR) |
| Acceleration(Gyro) Sensor | Yes | Local Key Operation | Yes |
| SW Feature | |||
| OS Ver. (webOS) | webOS6.0 | Local Contents Scheduling | Yes |
| Group Manager | Yes | USB Plug & Play | Yes |
| Fail over | Yes | Booting Logo Image | Yes |
| No Signal Image | Yes | RS232C Sync | Yes |
| Local Network Sync | Yes | PIP | Yes |
| PBP | Yes (4) | Screen Share | Yes |
| Video Tag | Yes (4) | Play via URL | Yes |
| Screen Rotation | Yes | External Input Rotation | Yes |
| Gapless Playback | Yes | Tile Mode Setting | Yes (Max. 15x15) |
| Setting Data Cloning | Yes | SNMP | Yes |
| ISM Method | Yes | Auto Set ID | Yes |
| Status Mailing | Yes | Control Manager | Yes |
| Cisco Certification | (TBD) | Crestron Connected | Yes |
| Smart Energy Saving | Yes | PM mode | Yes |
| Wake on LAN | Yes | Network Ready | Yes |
| Beacon | Yes | HDMI-CEC | Yes |
| SI Server Setting | Yes | webRTC | Yes |
| Pro:Idiom | Yes | ||
| Environment Conditions | |||
| Operation Temperature | 0°C to 40°C | Operation Humidity | 10 % to 80 % |
| Power | |||
| Power Supply | AC 100-240V~, 50/60Hz | Power Type | Built-In Power |
| Power Consumption | |||
| Typ. | 130W | Max. | 205 W |
| BTU (British Thermal Unit) | 444 BTU/Hr(Typ.), 699 BTU/Hr(Max) | Smart Enegy Saving (70%) | 91W |
| DPM | 0.5W | Power off | 0.5W |
| Sound | |||
| Speaker (Built-in) | Yes (10W X 2) | ||
| Certification | |||
| Safety | CB / NRTL | EMC | FCC Class "B" / CE / KC |
| ErP / Energy Star | Yes / Yes | ePEAT(US only) | Yes / Carbon "Reduced CO2" (TBD) |
| Software Compatibility | |||
| SuperSign CMS | Yes | SuperSign Control+ | Yes |
| SuperSign WB | Yes | SuperSign Cloud | Yes |
| Mobile CMS | Yes | Connected Care | Yes |
