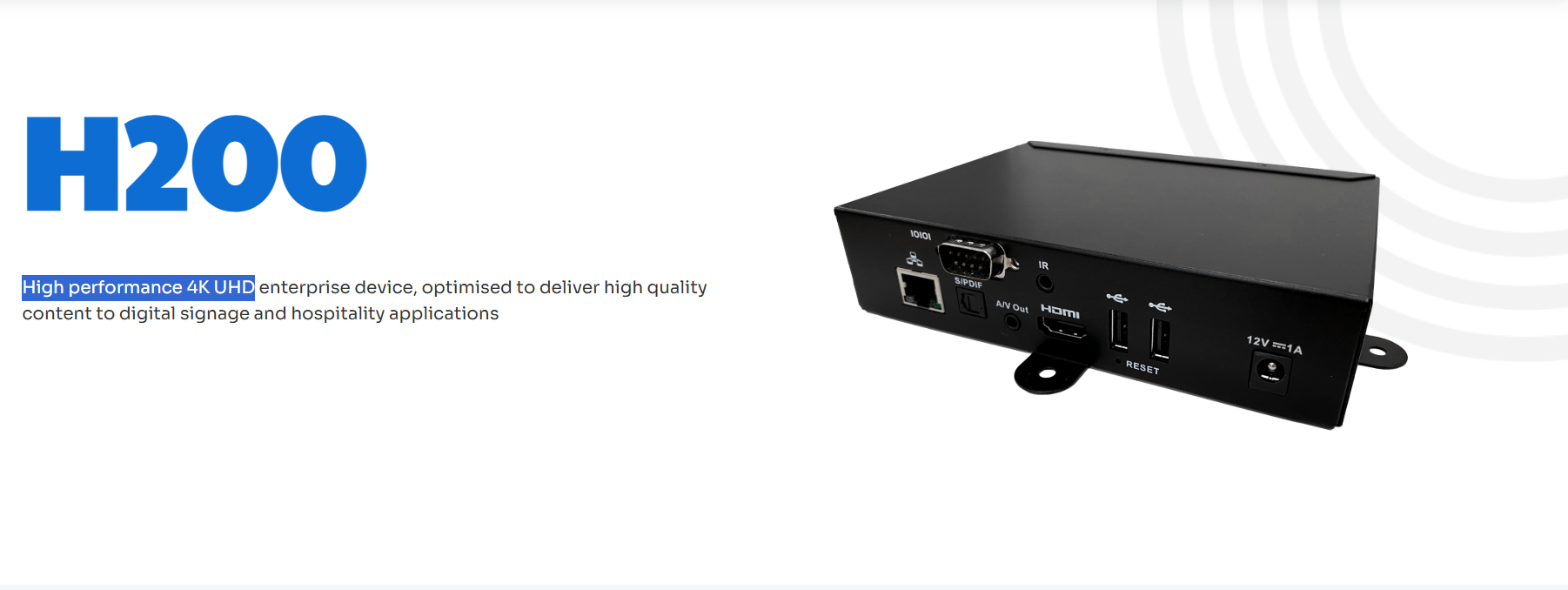

Amino H200 High performance 4K UHD IPTV Player

Key Features
  • AV1/HEVC 4Kp60 provides high quality images at reduced bandwidth
  • Out-of-sight operation using TVI serial interface or IR extender port as standard
  • Tamper-proof, ruggedized chassis
  • Integrated mounting brackets (VESA) to fit behind a screen for digital signage apps or underneath a desk for hospitality apps
  • Power-over-Ethernet for single cable install

Overview

The H200 is designed for “out of sight” operation to deliver content across a diverse range of environments – from in-room hospitality through public space signage and advertising applications where demand for 4K-based services is growing rapidly. Sector-specific features include a Power over Ethernet (PoE) capability for single-cable installation that reduces installation time and cost. A serial display port, IR extender port and VESA mounting all support out-of-sight operation, easy installation, and promote a simplified user experience. In a rugged case, the device combines a highperformance AV1 and HEVC capability processor with graphics acceleration for fast rendering of high quality graphics. HEVC capability enables the delivery of high quality images in areas where bandwidth or physical head-end storage needs to be optimised.
  • AV1/HEVC 4Kp60 provides high quality images at reduced bandwidth
  • Out-of-sight operation using TVI serial interface or IR extender port as standard
  • Tamper-proof, ruggedized chassis
  • Integrated mounting brackets (VESA) to fit behind a screen for digital signage apps or underneath a desk for hospitality apps
  • Power-over-Ethernet for single cable install

Amino H200

Specifications
Processing
CPU 21.8K DMIPs
DRAM 2GB RAM (4GB option)
Flash 8GB eMMC Flash (32GB option)
Interfaces
Digital Video HDMI 2.1
Analog Video CVBS + L/R Audio
Ethernet 10/100/1000
USB 2x USB 2.0
Digital Audio Optical S/PDIF
Serial Port RS232/TVI interface
Remote Control Support IR 36KHz 3.5mm IR Extender Port
Status LEDs Power/Standby
Memory Internal SD Card Slot
Video & Audio Formats
Video Resolution and Output Standards 480i, 480p, 576i, 576p, 720p, 1080i, 1080p60, 2160p60 10-bit (4Kp60) HDR10+ and HLG
Audio Codecs Dolby Digital, Dolby Digital Plus, LC-ACC & HE-AAC
Video Codecs AV1, HEVC/H.265, AVC/H.264 (MPEG-4, Part 10), MPEG-2, VP9
IP Streaming Formats RTSP, HLS, LL-HLS, Dash, LLDash, SRT, HTML5 Video-Tag
Networking & Security
Networking Standards IGMPv2 / IGMPv3 UDP-Multicast, UDP-Unicast
Power
Power Supply 12V/1A (9W maximum)
Alternative Power Source Power Over Ethernet (POE)
Operating Environment
Temperature 5-40°C (40-104°F) operating temperature
Humidity 30-95% relative humidity
Physical Properties & Mechanics
Size (L*W*H) 158 mm x 121 mm x 38 mm; Mounting: 16 mm
Weight 500g
Mounting Options VESA mounting brackets
Software
Javascript SDK for WebApplication development
REST API for Device Management
Compatible with Orchestrate Cloud Device Management
Pre-integrated CMS solutions (Contact us for more info)
Native Application support
Regulatory Compliance
Environmental and Safety FCC, CE, CB, UKCA and ROHs compliance
