AOPEN ChromeBox Mini 2

Key Features

Tiny Form Factor, Huge Performance

The AOPEN Chromebox Mini 2’s pocket-sized design fits seamlessly into any environment, making it perfect for spaces where real estate is at a premium. Powered by an Intel Celeron processor, the AOPEN Chromebox Mini 2 delivers uncompromised performance for a variety of applications.

Military-grade Durability: STD-810H Compliant

Engineered to withstand the rigors of diverse environments, the AOPEN Chromebox Mini 2 is MIL-STD-810H compliant. This means it can endure challenging conditions, offering reliability that goes beyond the ordinary. From demanding commercial settings to public spaces, the AOPEN Chromebox Mini 2 stands the test of durability.

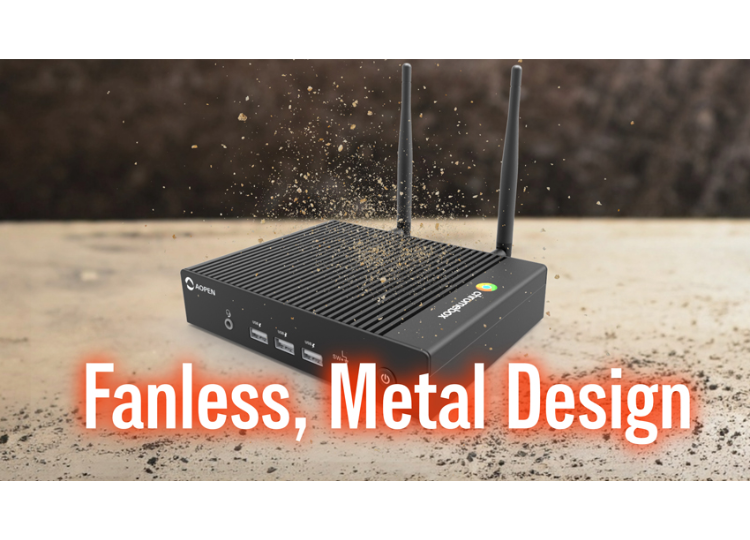

Aluminum & Metal Design

Reinforcing its military-grade status, the AOPEN Chromebox Mini 2 features a robust metal and aluminum design, distinguishing it from conventional plastic builds. This ventless, fanless chassis is not merely a testament to durability; it acts as a shield, safeguarding internal components from harmful dust accumulation and various environmental threats. The innovative design not only ensures silent operation but also resilience, delivering superior performance and longevity even in challenging conditions.

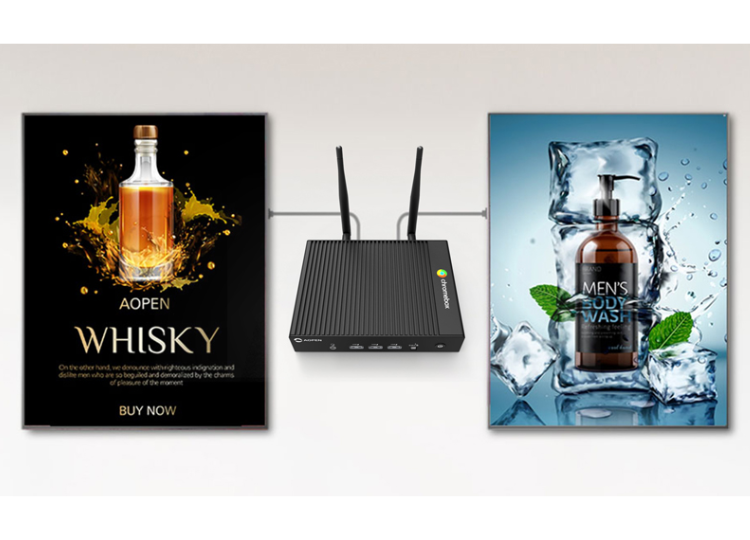

Dual-Output HDMI @ 4K

The Dual HDMI Output of the AOPEN Chromebox Mini 2 offers flexibility and versatility in connecting to various displays without adapters. Connect and manage multiple displays, and enable a dynamic, impactful presentation of content. The dual-HDMI capability ensures a seamless and efficient experience, versus others with one USB-C and one HDMI output.

AC Power Auto Recovery

Alleviate the need for physical reboots in kiosks, sparing the necessity of dismantling setups for a straightforward restart. Eliminate on-location service calls solely for powering on a device, and sidestep the inconvenience of using ladders for digital signage management. Thanks to APAR (AC Power Auto Recovery) on the AOPEN Chromebox Mini 2, these challenges are effectively addressed, promising a smoother and more efficient resolution to common pain points.

Dual External Antennas

Featuring dual-band external antennas, the AOPEN Chromebox Mini 2 goes the extra mile to optimize Wi-Fi coverage, delivering robust connectivity even in expansive, challenging, or areas with questionable signal strength. This setup enhances the device’s reach, providing a seamless and high-quality wireless experience in diverse environments, especially when content updates or feature changes are frequent.

Zero-Touch Enrollment for Seamless Deployment

Complex setup processes? Not here. The AOPEN Chromebox Mini 2 introduces Zero-Touch Enrollment, streamlining deployment and saving valuable time. Whether you’re integrating a single device or deploying them at scale, this feature ensures a hassle-free and efficient onboarding experience.

Low Total Cost of Ownership (TCO)

The AOPEN Chromebox Mini 2 is highly reliable with a low failure rate due to its fanless design, lack of vibrating parts, and excellent heat dissipation. This reduces maintenance costs and minimizes business losses caused by signage or kiosk malfunctions.

AOPEN Chromebox Mini 2

Specifications
Dimensions (W x H x D) 159 x 119 x 32 mm 6.26 x 4.69 x 1.26 inch
Volume 0.6 L
Weight 890g / 1.96 lb
CPU Intel® Core™Processor N4500
Chipset -
AiCU -
Memory Dual Channel 2G/LPDDR4, 8G
Graphics Intel® UHD Graphics, integrated on CPU
Network Connectivity WiFi 6 802.11 b/g/n/ac/ax + BT5.2
Expansion -
Audio Type: High definition Audio Channel: 5.1
LAN
Storage EMMC 32G
Front Panel I/O USB 3.0 Port x 3 (3.0) Others: LED Power Knob, Audio jack x 1(Combo), External power switch
Rear Panel I/O DC Jack x 1 HDMI Port x 2 (1.4b) USB 3.0 Port x 2 (3.0) Type C x 1 RJ45 LAN Jack x 1 Antenna Port x 2 Kensington Lock Hole x 1
CPU Thermal Module -
WatchDog Timer -
Adapter 65W DC19V 3.42A
Input Voltage AC 110 ~ 240
Warranty 3 years
MTBF 50,000hrs
Operating Temperature 0 ~45ºC (32 ~ 122ºF)
Storage Temperature -20 ~ 60ºC (-4 ~ 140ºF)
Relative Humidity 90% RH (50ºC non-Condensing)
