Categories ,

Brand Name : ,

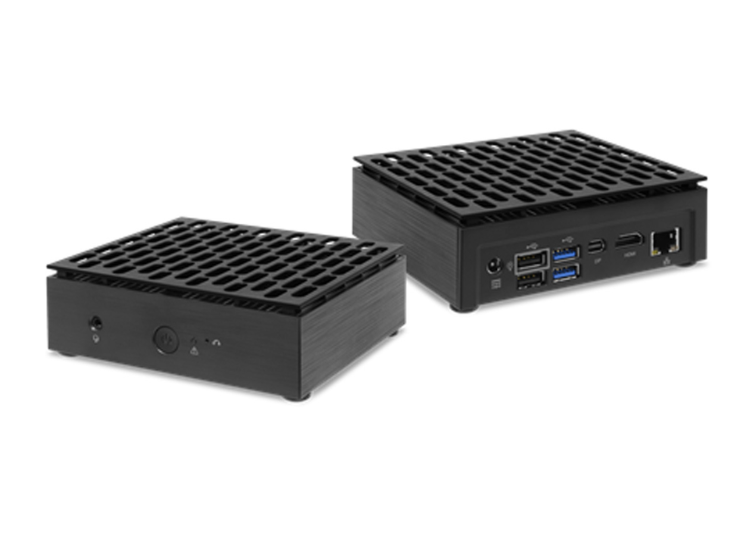

AOPEN – DE3650 S

Key Features
65"
55"
45"
ENQUIRE NOW
Small, robust, and cost-effective, the DE3650-S features an Intel® Celeron® CPU and Intel® UHD graphics. It delivers performance and reliability for applications ranging from industrial controllers to kiosk solutions while bringing something entirely new to market. Until now, device selection was decided by OS; but AOPEN ACE Mini configures to any major operating system, at scale – including Windows, Chrome, and Linux.

Effortless, Ready to Scale, Reliable

The AOPEN ACE series of digital signage media players are the next generation of Mini PC – designed for excellence across a broader range of applications, environments, and use cases. The AOPEN ACE series enables end users to select the right device from a single product line based on their unique requirements.

CHALLENGES

A persistent obstacle facing organizations looking to scale is the process of identifying appropriate devices to meet complex project requirements. Though some products may satisfy certain use cases, choosing a PC to deploy at scale is no simple task.

CHALLENGES

End-users find that reliability and affordability are on opposite ends of the spectrum. Finding that proper balance is a constant challenge that never has a resolution. Ideally, the lesser time thinking about their investment and focusing on the demands of their industry is a top priority.

SOLUTION

With design versatility, the AOPEN ACE Mini is a scalable-ready solution that addresses vital points and fits a wide range of applications. Scalable means high-quality, multiple platform compatibility at the right price point.

AOPEN - DE3650 S

Specifications
Dimensions (W x H x D) 125 x 35 x 110 mm / 4.9 x 1.38 x 4.33 inch
Volume 0.45 L
Weight N.W.: 125x110x35(43)mm, 0.53kg / G.W.: 235x210x91mm , 0.82Kg (Boxed)
CPU Intel® Celeron® N6210 @ 1.20 GHz (Dual Core)
Chipset N/A
AiCU N/A
Memory Channels: Dual Channel Type: DDR4SO-DOMM Data Rate: 2666 / 3200 MHz Max Memory: Max 20GB
Graphics Intel® UHD Graphicfor 10thGen Processors
Expansion M.2 2230 x 1, M.2 2280 x 1
Audio Type: RealtekHD Audio Codec ALC897 / Channel: Stereo
LAN Chip: Maxlinear Gigabit x1 (non PXE supported) / Speed: 10 / 100 / 1000 Mbps
Storage Onboard: eMMC64GB / M.2 SSD: M.22280 (Key M) SATA
Front Panel I/O Power Button X 1 / Others: Audio Combo x1, BIOS Recovery x1
Rear Panel I/O DC Input X 1 (12~ 24V) HDMI Port X 1 (HDMI 2.0) Display Port X 1 (miniDP) USBPort X4 (USB2.0 x2, USB3.1 x2) RJ45 LAN Jack X1
CPU Thermal Module N/A
WatchDog Timer 1 ~ 255 sec/min
Adapter 40W Adapter
Input Voltage AC 100 ~ 240V
Warranty 1 Year
MTBF 50,000 hrs
Operating Temperature 0 ~ 35°C (32 ~ 95°F)
Storage Temperature -30 ~ 60°C (-22 ~ 140°F)
Relative Humidity 90% RH (35°C Non-Condensing)
Support Chrome, Windows, Linux

Data Sheet

User Manual
