| Specifications | |
| General Specifications | |
| Detection Method | Projected Capacitive Multitouch Technology |
| Input Method Sizes (Touch) | Finger and Gloved Finger |
| Diagonal Inches | 55” |
| Glass | - |
| Substrate Glass | Extra Clear Anti-Reflective Cooted Glass |
| Glass Thickness | 3,3 mm |
| Interface OS (Touch) | HID |
| Multitouch | - |
| Single Tile unit | Winows 10, 8, 7, Ubuntu 18.4, Linux, Android, Chrome OS |
| Videowall Mode | Windows 10 (recommended) |
| OS Single Touch | macOS X Yosemite (Multitouch support trought TUIO Bridge) |
| Touch Data Connectivity | USB 2.0 |
| LCD Bezel | - |
| Bezel Color | Black Matt |
| Bezel Thickness | 6 mm – Equal in all sides: Top, Bottom, Left and Right |
| Weigth | 40.5 Kg |
| Dimensions | 1223 X 694 mm |

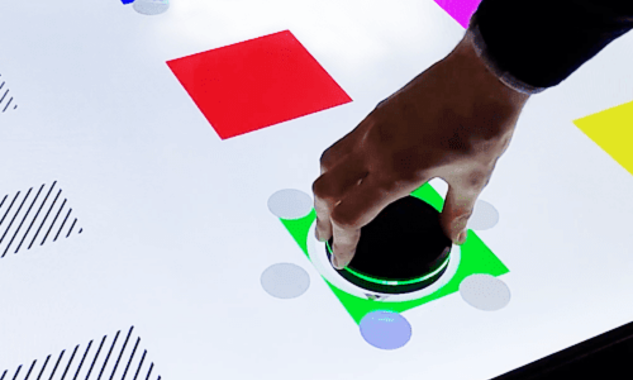

| Object Recognition | YES – Compatible up to 6 TAG’s per Tile unit |
| Connectivity | |
| Image Inputs | HDMI, DP-IN, VGA, DVI |
| Image Outputs | DP-OUT |
| Audio Inputs | JACK 3,5 mm |
| Audio Outputs | JACK 3,5 mm |
| USB | USB output to connect touch screen to a computer |
| Display | |
| Panel Type | IPS / Edge LED |
| Response Time | 8 milliseconds |
| Aspect Ratio | 0.672917 |
| Constrast Ratio | 58.33403 |
| Viewing Angle | 178º / 178 º |
| Display Resolution | 1920 X 1080 |
| Daisy Chain capabilities | Up to 4 Tile units for each single Display Port Input |
| Brightness | 500 cd/m2 |
| Panel Lifetime Color | Approximately 60000 hours |
| Depth | 1.07 Billion Color |

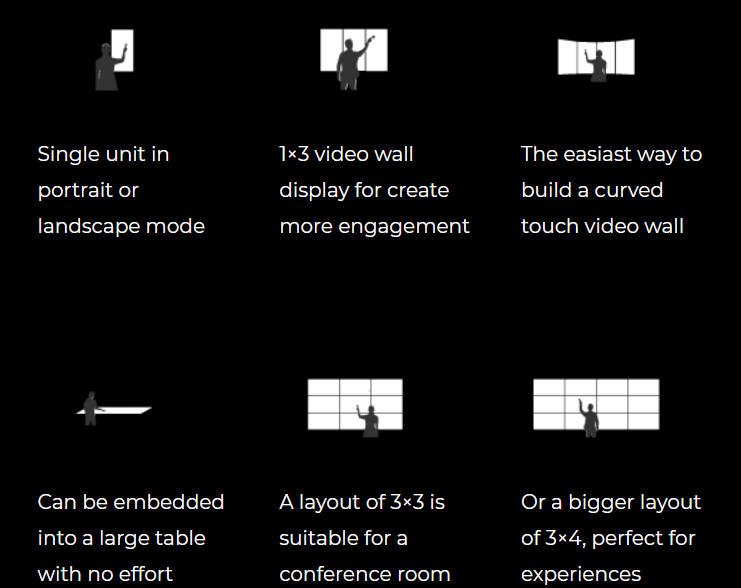

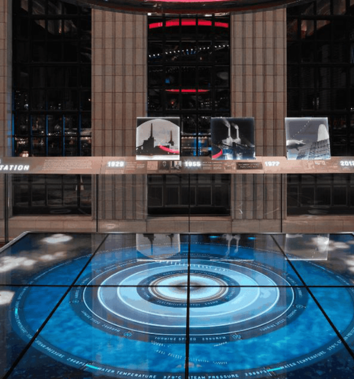

| Panel Position | Landscape / Portrait / Table |
| Vesa Mount | 600 X 400 |
| Power Consuption | 190 W |
| Power | 100 – 240 V AC – 50/60 Hz |
| Audio | |
| Type | Permanent-magnet dynamic loudspeaker |
| Input Power | 10W |
| Nominal Impedance | 8.0 Ohm +/- 15% at 1000 Hz |
| DC Impedance | 7.2 Ohm +/- 15% |
| Lowest Resonance Frequency | 330 Hz +/- 20% |
| Output Sound Pressure Level | 86 +/- 3 dB / 0.1W/890mV 0.1M Average at 400/500 Hz, 600/800 Hz |
| Effective Frequency Band | FO +/- 20 KHz Average SPL -10 dB |
| Distortion | 5% Maximum at 1000 Hz 1 W/0.1M |
| Environmental | |
| Operating Temperature | 0 ºC to 40 ºC |
| Storage Temperature | -20 ºC to 60 ºC |
| Warranty | 1 year |
| Package | |
| Box Dimensions | 1450 X 890 X 280 mm |
| Box Weight | 48.75 Kg |
