LG 500nits 49″ Slim Bezel Video-wall – 49VL5G-M

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

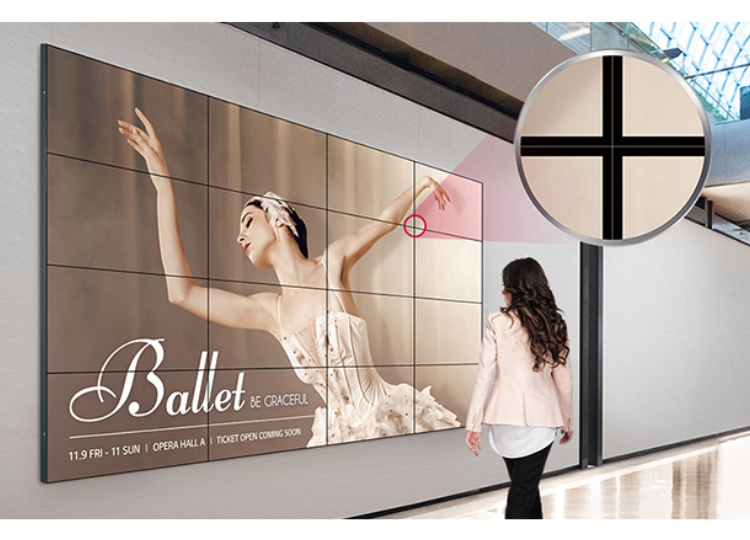

Incredible Immersion with Ultra-Narrow Bezel

Seamless Large Screens with Ultra- Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

Image Gap Reduction

The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

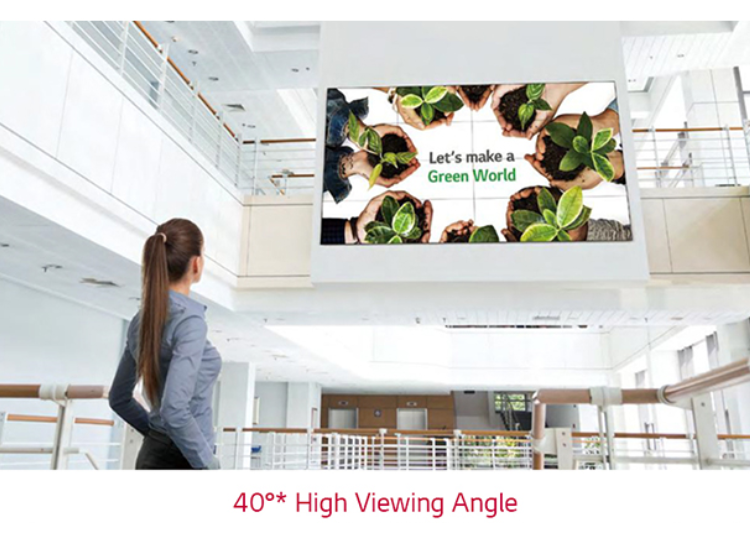

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G-M series is high enough to display vivid colors throughout the screen with no distortion.

VIVID AND DYNAMIC PICTURE QUALITY

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G-M series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

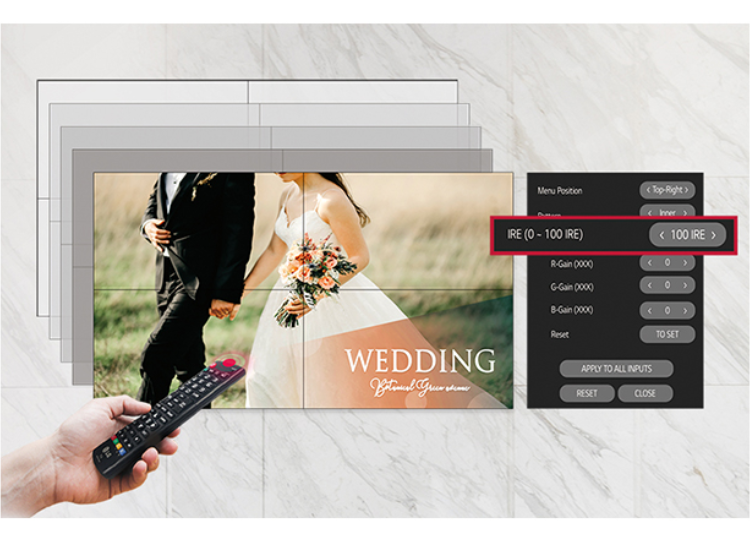

White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5G-M series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

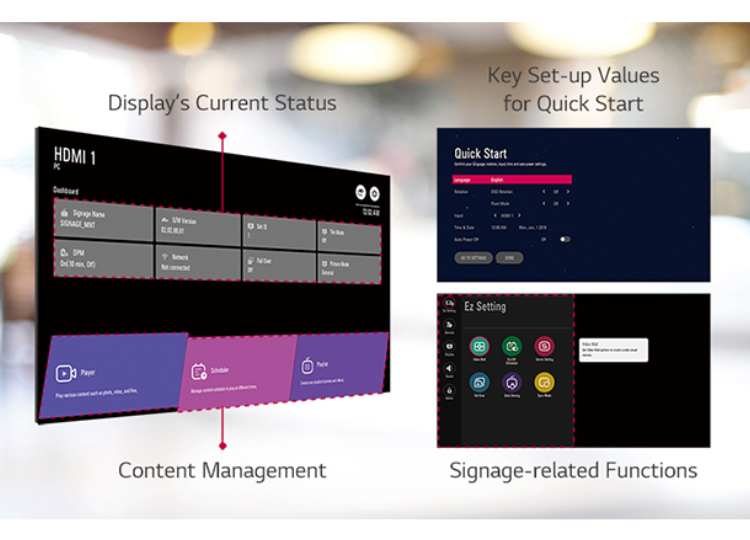

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

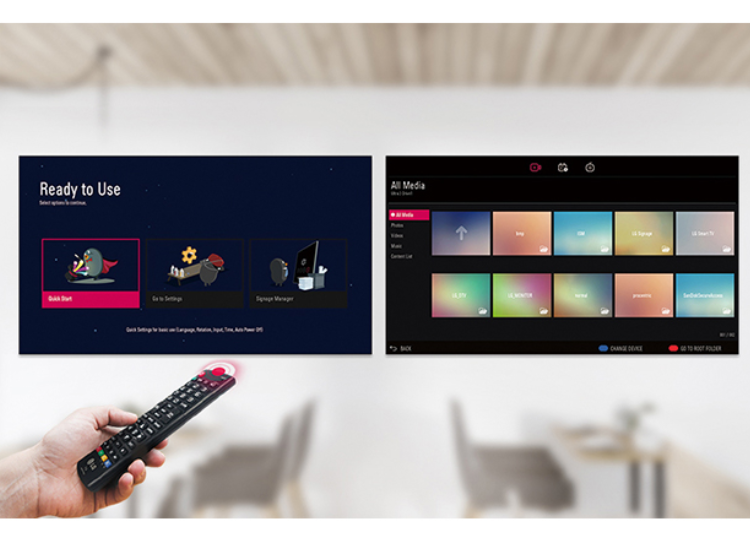

Intuitive GUI

The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.

Brightness(Typ.) : 500 cd/m²
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

LG - 49VL5G-M

Panel
Screen Size	49"
Panel Technology	IPS
Aspect Ratio	16:9
Native Resolution	1,920 x 1,080 (FHD)
Brightness (Typ.)	500nit
Contrast Ratio	1,000:1
Viewing Angle (H x V)	178 X 178
Response Time	8ms (G to G)
Surface Treatment	3%
Operation Hours (Hours / Days)	24/7
Orientation	Landscape & Portrait
Mechanical Specification
Bezel Color	Black
Bezel Width	T/R/L/B : 2.25/1.25/2.25/1.25mm
Weight (Head)	16.9Kg
Packed Weight	29.3kg
Monitor Dimensions (W × H × D)	1,077.6 x 607.8 x 89.7mm
Carton Dimensions (W × H × D)	1,214 x 778 x 263mm (Box outer size)
Handle	Yes
VESA™ Standard Mount Interface	600 x 400
Environment Conditions
Operation Temperature	0 °C to 40 °C
Operation Humidity	10 % to 80 %
Power
Power Supply	AC 100-240V~, 50/60Hz
Power Type	Built-In Power
Power Consumption
Typ./Max.	100W / 120W
Smart Energy Saving	60W
Standard (Certification)
Safety	CB / NRTL
EMC	FCC Class "A" / CE / KC
ErP	Yes
Software Compatibility
SuperSign CMS	Yes
SuperSign Control / Control+	Yes
SuperSign WB	Yes
SuperSign Media Editor	Yes
LG ConnectedCare	Yes
Connectivity
Input	HDMI (2), DP, DVI-D, Audio, USB2.0 Type A(1)
Output	DP, Audio
External Control	RS232C In/Out, RJ45 In, IR
Accessory
Basic	Remote Controller(include battery 2ea), Power Cord, RS232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional	Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V)
