LG 55EW5G-V – Transparent OLED

Key Features
  • Brightness(Typ.): 400nit (APL 25%, Without Glass)
  • Transparency(Typ.) : 38%
  • Bezel: 7.9 mm (T/R/L), 121.7mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
65"
55"
45"
ENQUIRE NOW

See the unseen, LG Transparent OLED

High Transparency

LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38%* much higher than conventional LCD transparent displays (10%**). While clearly showing objects behind the screen, it overlays the relevant information right before them.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

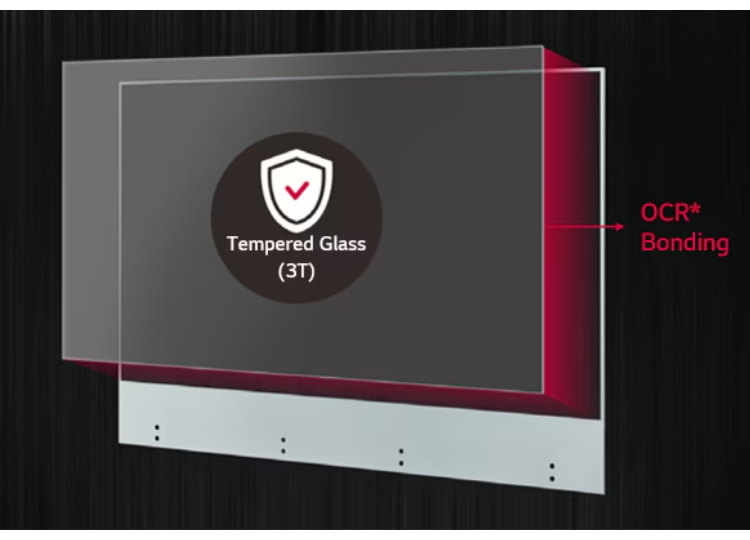

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

Expandable Design (2×N Tiling)

LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
  • Brightness(Typ.): 400nit (APL 25%, Without Glass)
  • Transparency(Typ.) : 38%
  • Bezel: 7.9 mm (T/R/L), 121.7mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR

LG 55EW5G-V

Panel
Screen Size 55"
Panel Technology OLED
Aspect Ratio 16 : 9
Native Resolution 1,920 x 1,080 (FHD)
Refresh Rate 120 Hz
Brightness 150/400nit (APL 100%/25%, Without Glass)
Contrast Ratio 150,000 : 1
Viewing Angle (H x V) 178 × 178
Response Time 1ms (G to G), 8ms (MPRT)
Life Time (Typ.) 30,000 Hrs
Operation Hours (Hours / Days) 18 / 7 (Moving Content Only)
Portrait / Landscape Yes / Yes
Transparency (Typ.) 38% (SET)
Mechanical Specification
Bezel Color Transparent
Bezel Width 7.9 / 7.9 / 7.9 / 121.7mm (T / R / L / B)
Weight (Head) 11.6Kg (Head) 3.4Kg (Signage Box)
Packed Weight 23.1Kg
Monitor Dimensions (W × H × D) 1,225.5 x 810.1 x 7.0mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)
Carton Dimensions (W × H × D) 1,345 x 920 x 207mm (Box outer size)
Protection Glass (Depth) 3.0 mm
Protection Glass (Tempered / Chemical Strengthening) Chemical Strengthening
Protection Glass (Anti-Reflective) Film
Protection Glass (Shatter-Proof) Yes
Environment Conditions
Operation Temperature 0 °C to 40 °C
Operation Humidity 10 % to 80 %
Power
Power Supply AC 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption
Typ./Max. 171W (IEC 62087) / 280 W
BTU (British Thermal Unit) 853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max.)
Standard (Certification)
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC
ErP Yes
Software Compatibility
SuperSign CMS Yes
SuperSign Control / Control+ Yes
SuperSign WB Yes
SuperSign Media Editor Yes
LG ConnectedCare Yes
Connectivity
Input HDMI, DP, USB 2.0 Type A
Output DP, Audio
External Control RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver)
Accessory
Basic Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5, 20EA), Shield Cover Assy', Rubber Damper 4EA, MCX cable Holder 4ea
Optional Stand (ACC-S-EW5F, 2 Pole)

Data Sheet

User Manual
