LG 55″ Transparent OLED Touch Signage – 55EW5TK-A

Key Features

Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
Transparency(Typ.) : 33% (Set)
Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
P-Cap Touch, Tempered Front Glass (3T)

See Beyond, LG Transparent OLED Touch Signage

A New Level of See-through View

LG Transparent OLED Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings. Boasting vivid and clear colors with high transparency, this display provides visual enhancements to objects placed behind it, giving viewers an impressive “wow” factor. Not only that, it can respond according to viewers’ touch, which has great potential for various applications where customer interactions are required.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

Intuitive P-Cap Touch

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips with no lag.

High Transparency

LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 33% even with P-Cap touch film much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.

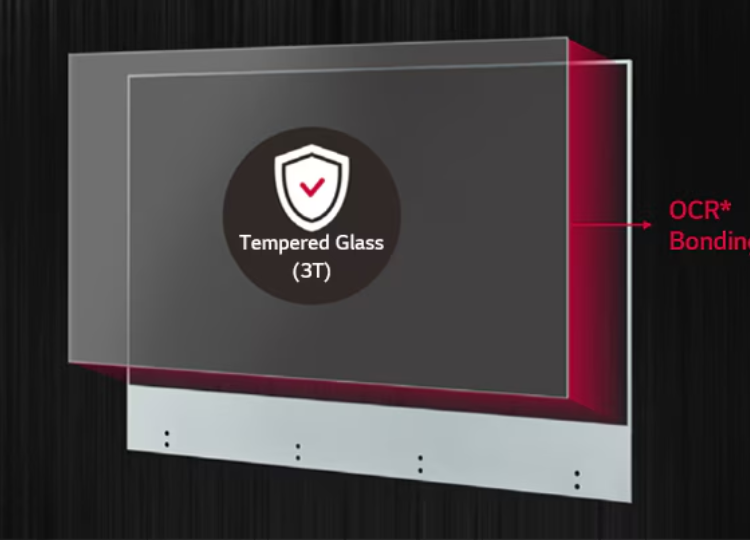

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

Expandable Design

LG Transparent OLED Touch Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
Transparency(Typ.) : 33% (Set)
Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
P-Cap Touch, Tempered Front Glass (3T)

LG 55EW5TK-A

Panel
Screen Size	55”
Panel Technology	OLED
Native Resolution	1,920 X 1,080 (FHD)
Brightness	150 / 400 nit (APL 100% / 25%, Without Glass)
Contrast Ratio	150,000 : 1
Color gamut	BT709 120%
Viewing Angle (H x V)	178 × 178
Color Depth	1.07 Billon Colors (10 bit (R))
Response Time	1 ms (G to G), 8 ms (MPRT)
Surface Treatment (Haze)	Hard Coating (2 H)
Operation Hours (Hours / Days)	18 / 7 (Moving Content Only)
Portrait / Landscape	Yes / Yes
Mechanical Specification
Bezel Color	Matt Silver
Bezel Width	7.9 / 7.9 / 7.9 / 144.5 mm (T/R/L/B)
Weight (Head)	12.9 kg (Head) 3.4 kg (Signage Box)
Monitor Dimensions (W × H × D)	1,225.5 × 832.9 × 7.4 mm (Head) 782.8 × 238.4 × 34.7 mm (Signage Box)
Feature
Key Feature	Internal Memory (16 GB), Sensor (Temperature Sensor), webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Video Tag (4), Rotation (Screen Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected® (Network based control.)), Power (PM Mode, Wake on LAN), HDMI-CEC (Compatibility may differ by equipment.), SI Server Setting, Pro:Idiom
Environment Conditions
Operation Temperature	0 to 40
Operation Humidity	10%-80%
Power
Power Supply	AC 100-240 V~, 50/60 Hz
Power Type	Built-in Power
Power Consumption
Typ./Max.	84W (IEC 62087) / 300 W (TBD)
BTU (British Thermal Unit)	TBD
Certification
Safety	IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC	FCC Class "A" / CE / KC
ErP	Yes
Software Compatibility
SuperSign CMS	Yes
SuperSign Control / Control+	Yes
SuperSign Media Editor	Yes
LG ConnectedCare	Yes * The availability can differ by region.
Connectivity
Input	HDMI (HDCP 1.4), DP (HDCP 1.3), RS-232C In, RJ45 (LAN), IR In (External IR Receiver), USB 2.0 Type A, USB 2.0 Type A (Touch Control Board Only)
Output	DP Out, Audio Out, Touch USB (USB 2.0 Type B), RS-232C Out (w / IR Out), RJ45 (LAN)
Language
OSD	English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Arabic
Accessory
Basic	Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS-232C Gender, MCX / Harness Cables (3,000 mm × 4 ea / 3,000 mm × 2 ea for Connection between Panel and Signage Box), HDMI Cable (3 M) Micro to A type USB Cable (3 M (TBD) for Connection between Touch and Signage box), A to B Type USB Cable (Touch Out), Screw (M4 × L22, 12 ea / M4 Nut 12 ea / M3 × L5.5, 8 ea / M3 × L3.5, 20 ea), Shield Cover Assy’, Rubber Damper 4 ea, Touch Cable Holder 2 ea, MCX Cable Holder 4 ea
Touch
Available Object Size for Touch	Ø 12 mm ↑
Response Time	120 ms ↓
Accuracy	3.5 mm
Interface	USB 2.0
Protection Glass Thickness	3.0 T (Anti-Glare / Anti-Finger Print)
Protection Glass Transmission	84 % (Typ.)
Operating System Support	Windows 8.1, Windows 10
Multi Touch Point	Max. 10 Points
