LG 500nits 55″ Slim Bezel Series Video-wall – 55VM5J-H

Key Features

Brightness(Typ.) : 500 nit
Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
Depth : 86.9 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

Artistic Immersion, Overwhelming Captivation

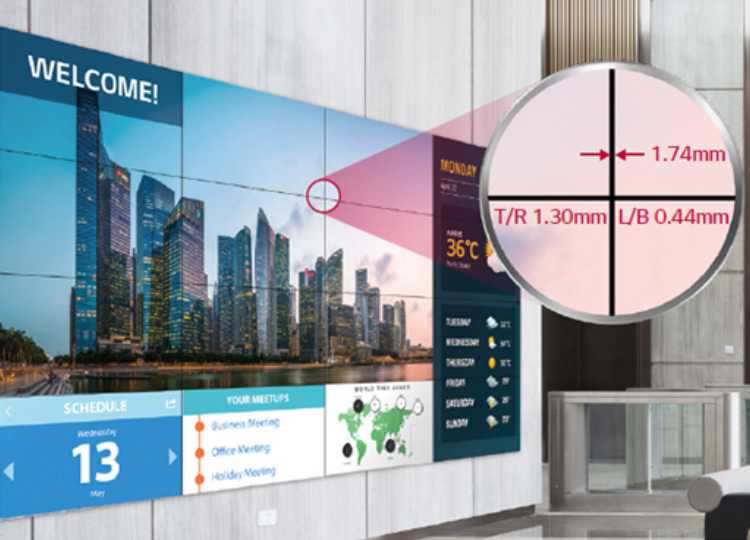

Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40˚) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.

Wider Viewing Angle

LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

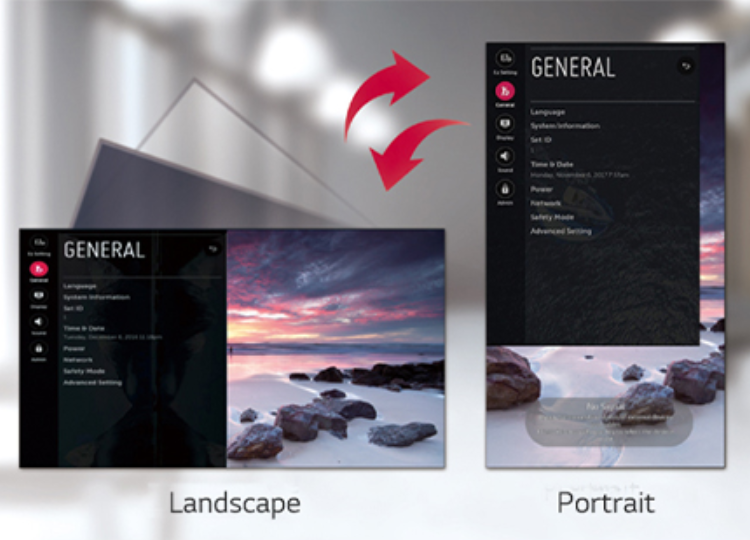

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

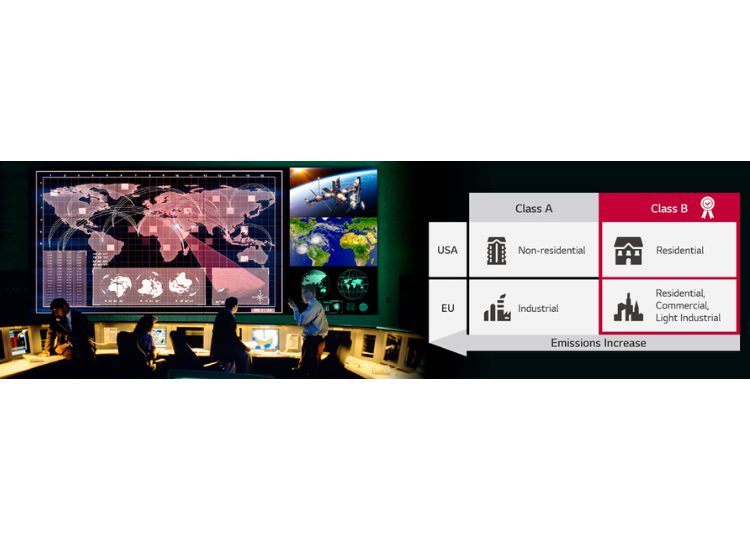

EMC Class B Certified

The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

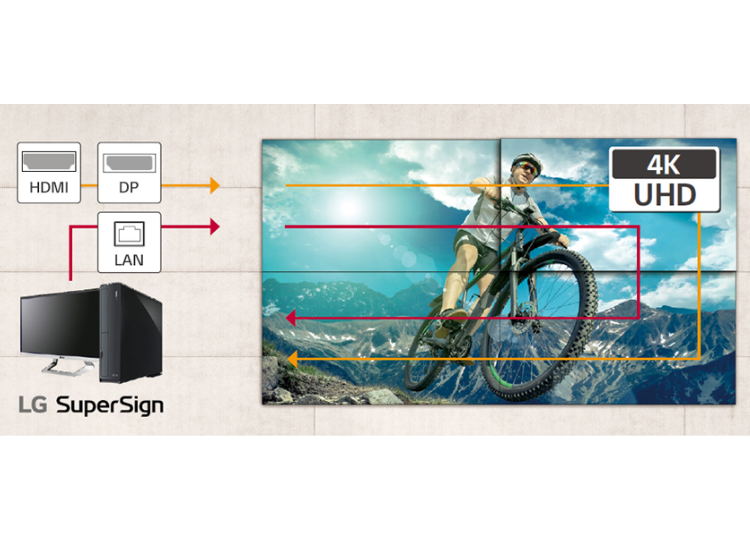

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

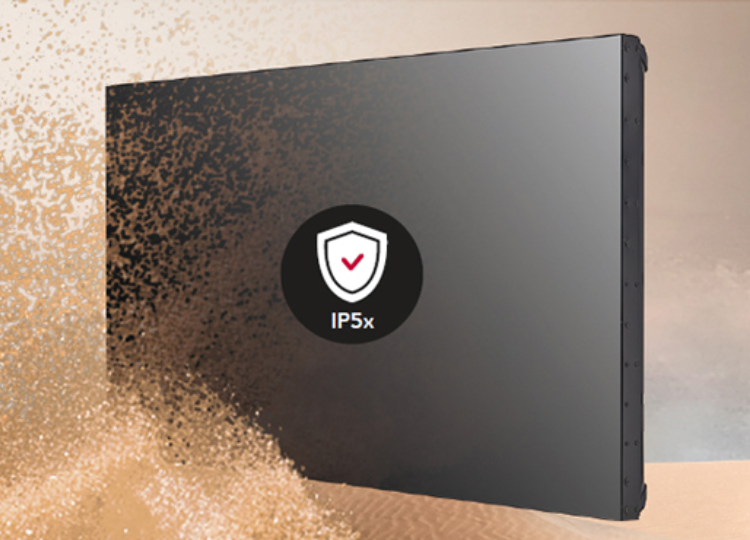

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation

Brightness(Typ.) : 500 nit
Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
Depth : 86.9 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

LG - 55VM5J-H

Panel
Screen Size	55"
Panel Technology	IPS
Aspect Ratio	16 : 9
Native Resolution	1,920 x 1,080 (FHD)
Refresh Rate	60Hz
Brightness	500
Contrast Ratio	1,000:1
Dynamic CR	500,000 : 1
Color gamut	NTSC 72%
Viewing Angle (H x V)	178x178
Color Depth	10bit, 1.07Billion colors
Response Time	8 ms (G to G)
Surface Treatment (Haze)	28%
Life Time (Typ.)	60,000Hrs
Life Time (Min.)	50,000Hrs
Operation Hours (Hours / Days)	24/7
Portrait / Landscape	Yes / Yes
Mechanical Specification
Bezel Color	Black
Bezel Width	B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R) A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
Weight (Head)	18.8 Kg
Monitor Dimensions (W × H × D)	1,212.2 × 683.0 × 86.9 mm
Handle	Yes
VESA™ Standard Mount Interface	600 x 400
VESA™ Standard Mount Interface	600 x 400
Key Feature
HW	Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
SW	webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion
Environment Conditions
Operation Temperature	0 °C to 40 °C
Operation Humidity	10 % to 80 %
Power
Power Supply	AC 100-240V~, 50/60Hz
Power Type	Built-In Power
Power Consumption
Typ.	160 W
Max.	190 W
Smart Energy Saving	90 W
DPM	0.5 W
Power off	0.5 W
BTU (British Thermal Unit)	546 BTU/Hr(Typ.), 648 BTU/Hr(Max)
Standard (Certification)
Safety	CB / NRTL
EMC	FCC Class "B" / CE / KC
ErP	Yes (EU Only)
Media Player Compatibility
OPS type compatible	Yes (Piggyback)
Software Compatibility
SuperSign CMS	Yes
SuperSign Control / Control+	Yes
SuperSign WB	Yes
SuperSign Media Editor	Yes
LG ConnectedCare	Yes
Connectivity
Input	HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
Output	DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)
Accessory
Basic	Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional	OPS Kit (KT-OPSF)
Special Feature
IP Rating	IP5X tested
