LG TNF5J Series – Incell Touch & Open Frame Display

Key Features

display_size_i

Clear

Brightness : 500 nit
Multi Touch Point : 10 Points (Max.)
Interface : HDMI (2, HDCP 2.2/1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)

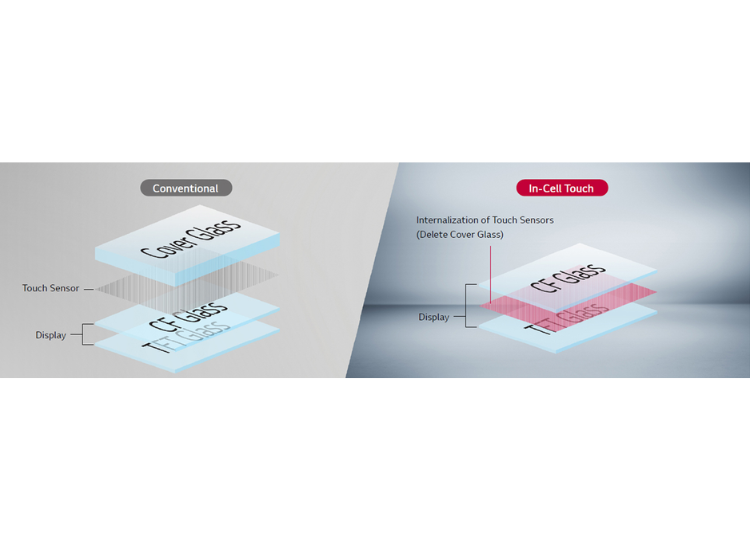

New In-Cell Touch Open Frame for Optimal Customization

Slim & Light

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

Clear Picture Quality

Compared to general touch products, TNF5J implements clear picture quality without distortion and milk effects caused by additional touch sensor film parts.

Design Flexibility

By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.

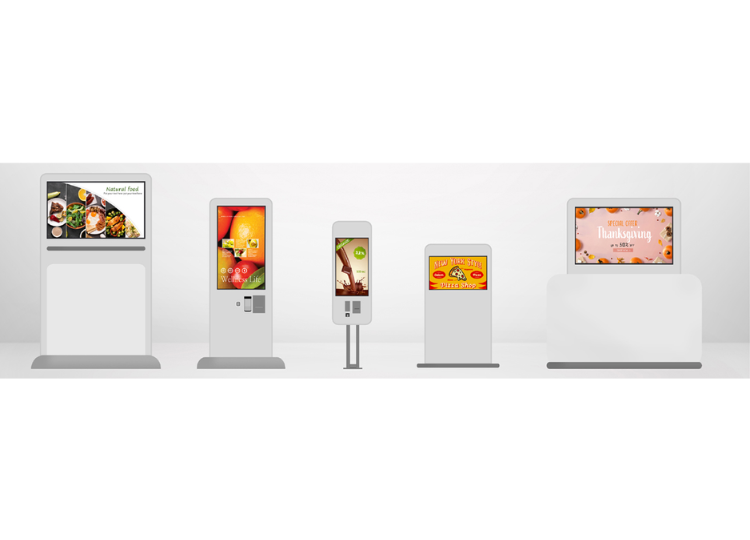

24hrs / 7days

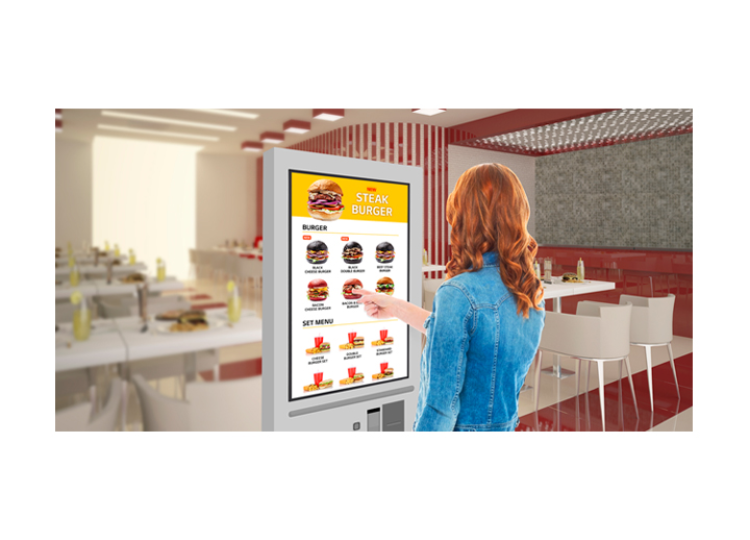

TNF5J’s excellent durability allows for use in kiosks that require a full day of operation.

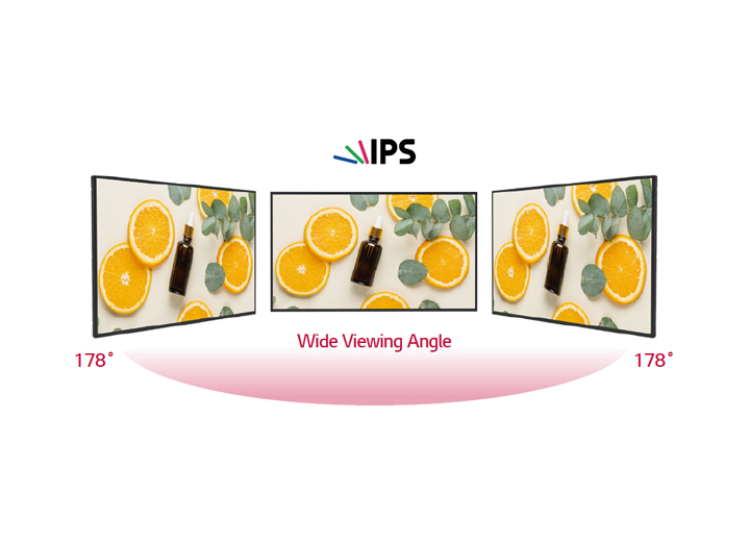

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

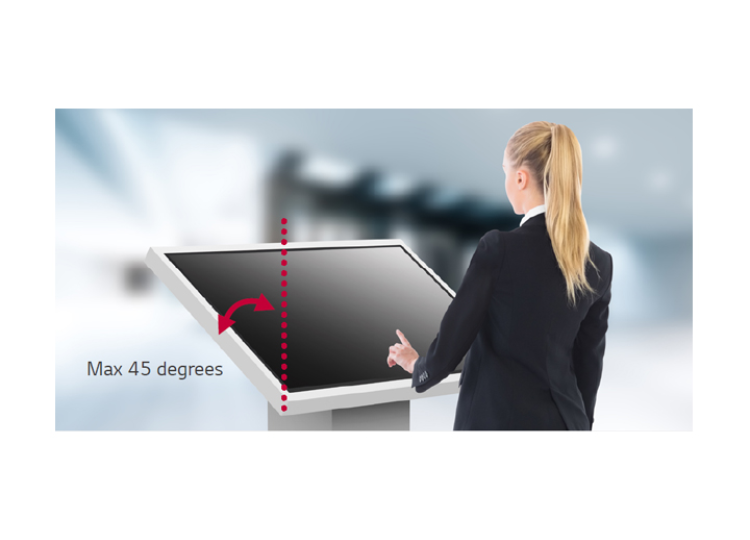

45-degree Tilt (Face up) Installation Possible

When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.

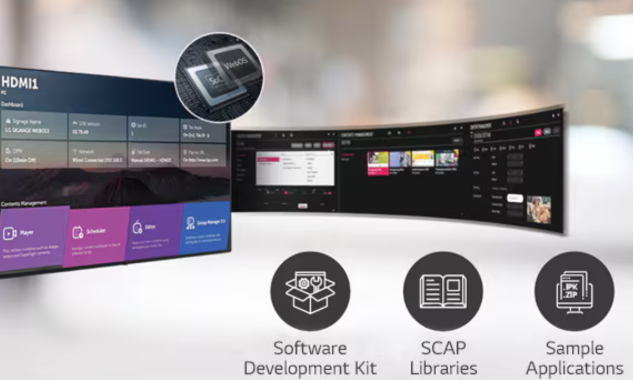

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC* and web engine, is available on TNF5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

10 Points of Multi-Touch

The TNF5J provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

Brightness : 500 nit
Multi Touch Point : 10 Points (Max.)
Interface : HDMI (2, HDCP 2.2/1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)

LG TNF5J

Panel
Screen Size	21.5"
Panel Technology	AHVA (IPS)
Back Light Type	Edge
Aspect Ratio	16:9
Native Resolution	1,920 x 1,080 (FHD)
Refresh Rate	60Hz
Brightness	1,500nit (Typ, w/ Glass)
Contrast Ratio	1,000:1 (Typ)
Dynamic CR	800,000:1
Color gamut	NTSC 72%
Viewing Angle (H x V)	178 x 178
Color Depth	8bit, 16.7Million colors
Response Time	25ms (G to G)
Surface Treatment (Haze)	Anti glare, 3H (Haze 25%)
Lifetime	50,000 Hrs (Min.)
Operation Hours (Hours / Days)	24/7
Portrait / Landscape	Yes / Yes
QWP (Quarter Wave Plate)	Yes (Apply on glass)
Mechanical Specification
Bezel Color	Black
Bezel Width	38.3mm (R/L), 24.0mm (T/B)
Weight (Head)	8.7 kg
Packed Weight	10kg
Monitor Dimensions (W × H × D)	557.3 x 319.8 x 66 mm
Carton Dimensions (W × H × D)	632 x 394 x 187 mm (Box outer size)
VESA™ Standard Mount Interface	100x100
Protection Glass	Depth 3mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective, Infrared - Resistance (IR), Shatter-Proof
Key Feature
HW	Internal Memory 16GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration (Gyro) Sensor, Power Indicator, FAN
SW	webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting , webRTC, Pro:Idiom
Environment Conditions
Operation Temperature	-30°C to 50 °C
Operation Humidity	5 % to 100 %
Power
Power Supply	AC 100-240V~, 50/60Hz
Power Type	Built-In Power
Power Consumption
Typ.	127 W
Max.	170 W
BTU (British Thermal Unit)	433 BTU/Hr (Typ.), 580 BTU/Hr (Max.)
Standard (Certification)
Safety	CB / NTRL
EMC	FCC Class "A"/ CE / KC
ErP	Yes
Software Compatibility
SuperSign CMS	Yes
SuperSign Control / Control+	Yes
LG ConnectedCare	Yes
Connectivity
Input	Digital (HDMI(2), HDCP 2.2/1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1)
Output	Audio Out, USB2.0 Type B(1)
Accessory
Basic	Power Cord 1.55m, USB Cable (Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver
Touch
Available Object Size for Touch	Ø6mm ↑
Reponse Time (Based on 'Paint' app on Windows 10 PC)	90ms ↓
Accuracy	3.5mm±0.5mm
Interface	USB 2.0
Operating System Support	Windows 10
Multi Touch Point	Max. 10 Points
