LG CreateBoard TR3DK Series – Android Base, 2K White Board

Key Features

display_size_i

Clear

Internal Memory : 64GB (Storage) / 8GB (RAM)
Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
Resolution : 3,840 × 2,160 (UHD)
Multi-Touch Point : 40 Points (Max.)

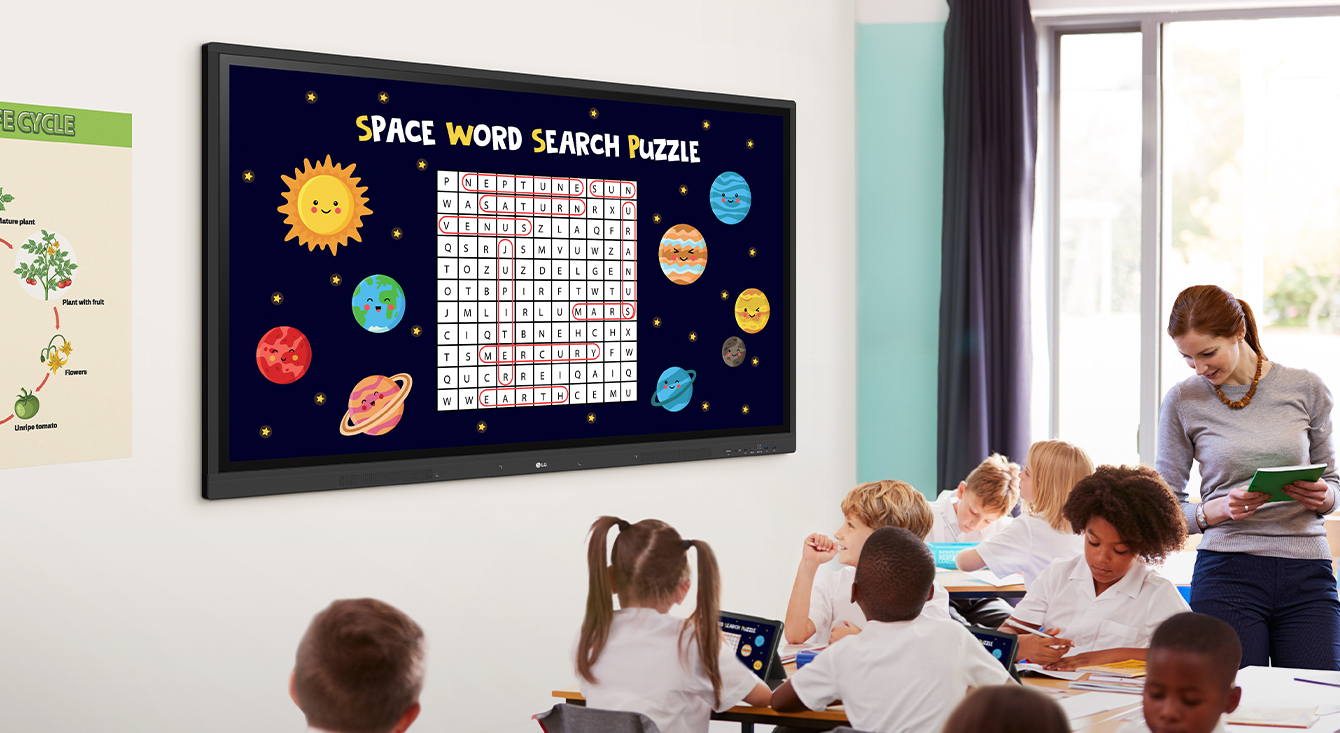

A New Level of Classroom with LG CreateBoard

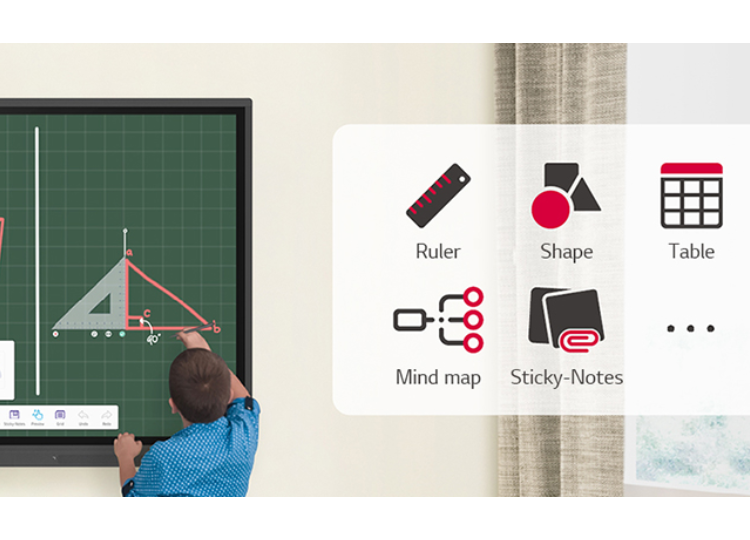

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

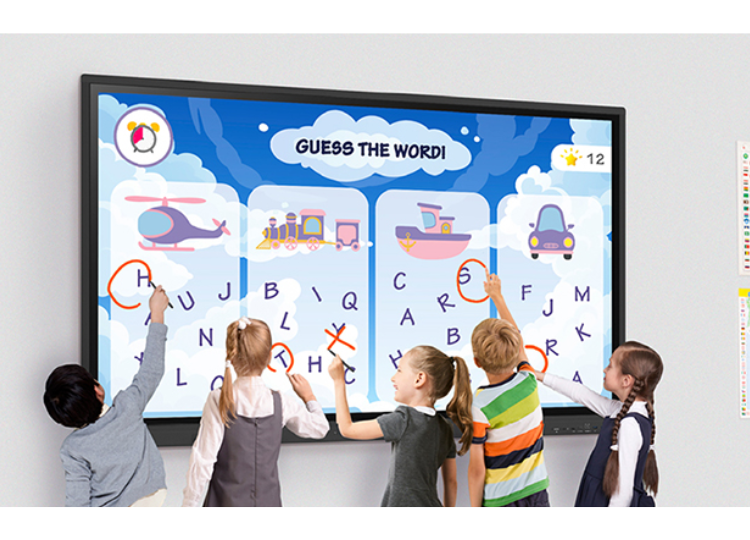

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

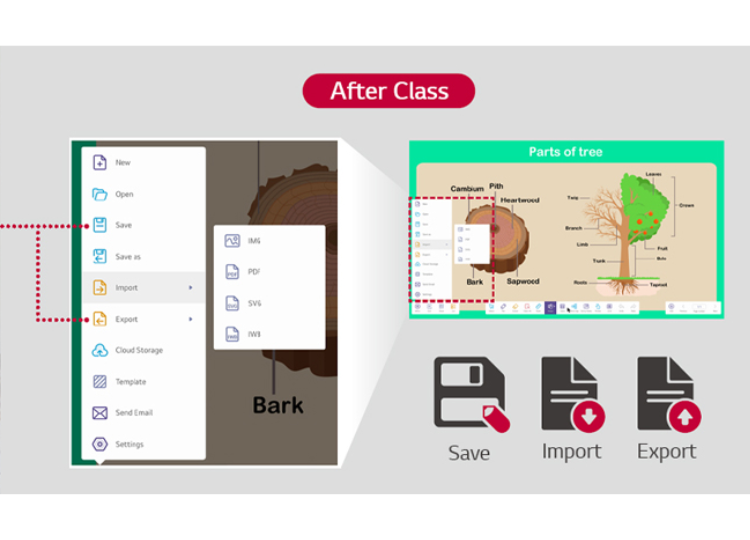

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality. Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

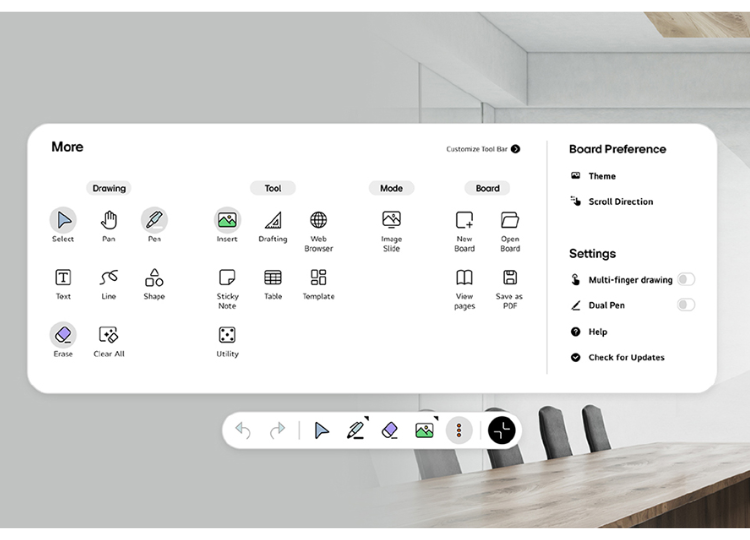

Tools for Fluid Collaboration

A variety of tools such as a calculator, clock, and sticky note are available to facilitate smooth discussions and ensure seamless idea sharing and communication. Also, users can personalize the menu bar with their most frequently used tools, thereby improving their work efficiency

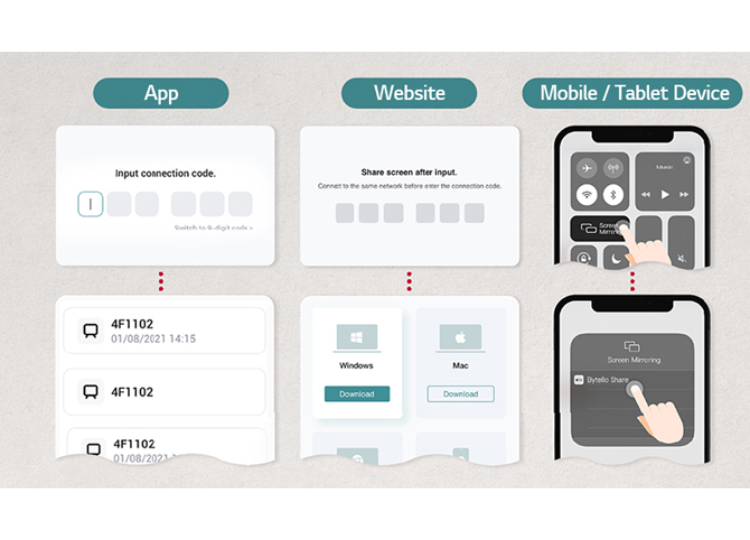

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

Remote-control / Scheduling

Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control.

Google Certification

LG CreateBoard has received Google certification, enabling users to seamlessly integrate with the Google ecosystem by connecting their Google accounts.

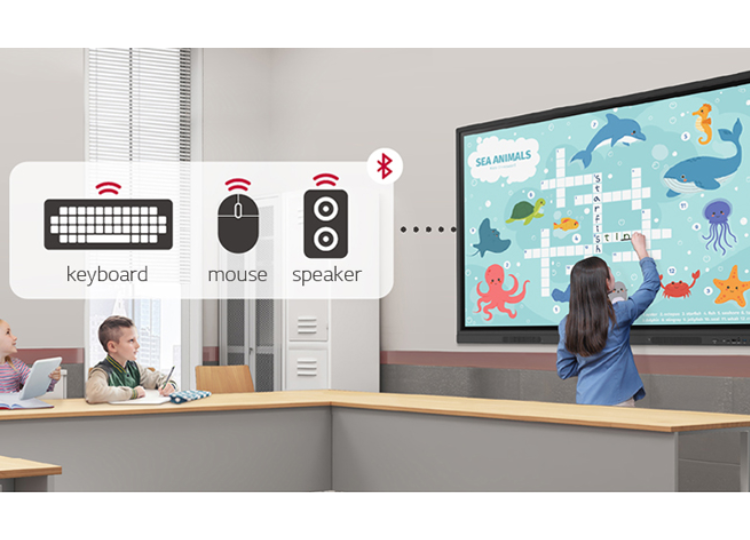

Bluetooth Connectivity

LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.

Internal Memory : 64GB (Storage) / 8GB (RAM)
Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
Resolution : 3,840 × 2,160 (UHD)
Multi-Touch Point : 40 Points (Max.)

LG TR3DK Series

Panel
Screen Size	55"
Panel Technology	IPS
Back Light Type	Direct
Aspect Ratio	16 : 9
Native Resolution	3,840 X 2,160 (4K UHD)
Refresh Rate	60 Hz
Brightness	440 nit (w/o Glass Max.), 390 nit (w/o Glass Typ.)
Contrast Ratio	1,200 : 1
Color gamut	NTSC 72%
Viewing Angle (H x V)	178 × 178
Color Depth	10 bit (8 bit + FRC)
Response Time	8 ms
Surface Treatment (Haze)	25%
Lifetime	30,000 Hrs(L50, Min.), 50,000 Hrs (L30)
Operation Hours (Hours / Days)	16 / 7
Portrait / Landscape	No / Yes
Mechanical Specification
Bezel Color	Black
Bezel Width (T / R / L / B)	18 / 18 / 18 / 45 mm
Weight (Head)	26.1 kg
Packed Weight	34.5 kg
Monitor Dimensions (W × H × D)	1,271 × 774 × 87 mm
Carton Dimensions (W × H × D) (Box Outer Size)	1,401 × 859 × 220 mm
Handle	Yes
VESA™ Standard Mount Interface	400 × 200 mm
Environment Conditions
Operation Temperature	0 to 40°C
Operation Humidity	10% to 90%
Power
Power Supply	AC 100-240V~, 50/60Hz
Power Type	Built-In Power
Power Consumption
Typ./Max.	170 / 395 W
DPM	≤0.5W
Power off	≤0.5W
BTU (British Thermal Unit)	580 BTU/Hr (Typ.), 1,348 BTU/Hr (Max.)
OPS Compatibility
OPS Type Compatible	Yes (Slot)
OPS Power Built In	Yes
Standard (Certification)
Safety	CB / NRTL
EMC	FCC Class "A" / CE / KC
ErP / Energy Star	Yes / Yes
Software Compatibility
LG ConnectedCare	Yes
LG ConnectedCare DMS	Yes
Connectivity
Input	HDMI (3, HDCP 2.2), RGB (VGA), Audio In, RS-232C In, RJ45 (LAN), USB 3.0 Type A (4), USB 2.0 Type A, USB Type C (USB-PD, DP-Alt)
Output	HDMI Out, Audio Out (1, Optical 1 (SPDIF)), Touch USB (2), RJ45 (LAN)
Sound
Speaker	Yes (15W × 2)
Language
	English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Qajaq, Catalan, Basque
Accessory
Basic	Power Cord 3 M1, USB Cable (Type A-Type B) 5 M1, HDMI Cable 3 M1, Writing Pen2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional	Wall Mount(WM-L000S), Floor Stand(ST-000F)
Touch
Available Object Size for Touch	Ø2 mm↑
Response Time	≤5 ms
Accuracy	±1 mm
Interface	USB 2.0
Protection Glass Thickness	3 T (Anti-Glare)
Protection Glass Transmission	88%
Operating System Support	Windows 7 / 8 / 10 / Linux / Mac / Android (Supports one point touch on Linux / Mac)
Multi Touch Point	Max 40 points (Windows), Max 20 points (Android)
Android System
SoC	Quad Core A55
GPU	Mali G52MP2
RAM	8 GB
Storage	64 GB
Wi-Fi	802.11a/b/g/n/ac/ax (Wi-Fi 6)
LAN	Gigabit LAN
Bluetooth	Bluetooth 5.0
OS ver.	Android 13
Key Feature
Internal Memory (64 GB), Built-In Wi-Fi (Slot Type), Auto Brightness Sensor, Power Indicator, Android 13, Background Image (Booting Logo Image), Multi-screen (PIP / PBP, External Source), Screen Share (LG CreateBoard Share), Power (Smart Energy Saving, Wake on LAN)
