SKU N/A Categories Digital Signage, Standard UHD

Brand Name : Digital Signage, Standard UHD

LG UL3J-N Series – UHD Signage

Key Features

Display Size - STD

Clear

Brightness(Typ.) : 400 nits
Resolution : ULTRA HD (3,840 x 2,160)
webOS-based High Performance
Built-in Speaker
Compatible with LG’s One:Quick Share
Compatible with AV Control Systems

LG webOS UHD Signage

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

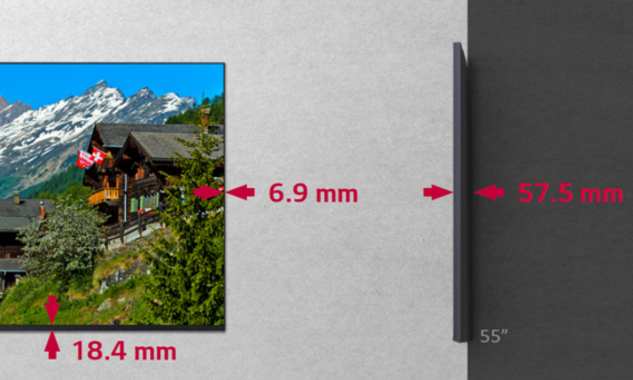

Sophisticated Slim Design

This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**

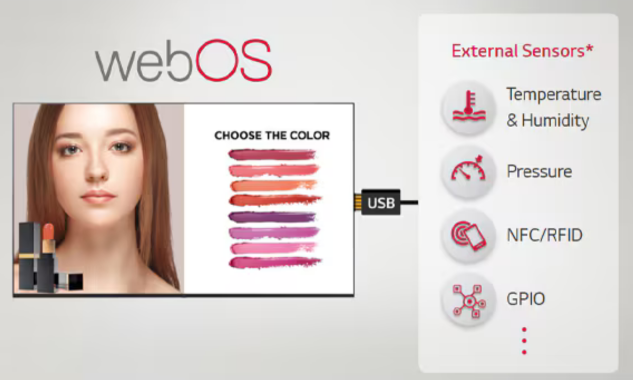

Various Sensor Connection

LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

Compatible with AV Control Systems

The UL3J series supports Rocware and Alpha Acoustics to achieve seamless integration and automated control**, boosting business management efficiency.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

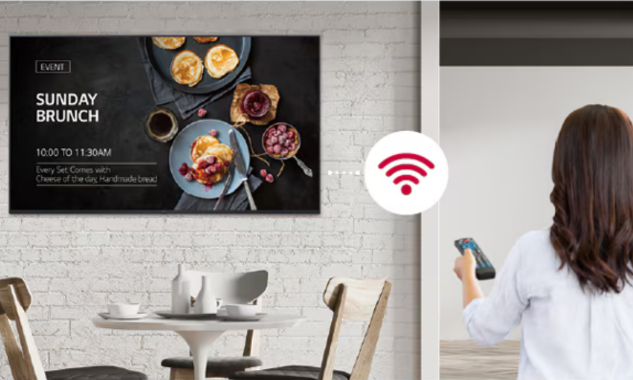

Easy Content Distribution & SW Update

UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.

Wireless Access Point

UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Brightness(Typ.) : 400 nits
Resolution : ULTRA HD (3,840 x 2,160)
webOS-based High Performance
Built-in Speaker
Compatible with LG’s One:Quick Share
Compatible with AV Control Systems

UL3J-N

Specifications
Panel
Screen Size	43", 50", 55"	Panel Technology	IPS
Back Light Type	Direct	Aspect Ratio	16:09
Native Resolution	3840 x 2160 (UHD)	Refresh Rate	60Hz
Brightness	400nit (Typ.)	Contrast Ratio	1,300:1
Dynamic CR	1,000,000:1	Color Gamut	DCI 80%
Viewing Angle(H x V)	178 X 178	Color Depth	10bit, 1.07Billon colors
Response Time	8m (G to G)	Surface Treatment(Haze)	3%
Life time	30,000Hrs (Min)	Operation Hours (Hours/Day)	16/7
Portait / Landscape	Yes / Yes
Connectivity (Jack Interface)
Input - Digital - HDMI	Yes(3), HDCP2.2/1.4	Input - Digital - DP	No
Input - Digital - DVI-D	No	Input - Analog - RGB	No
Input - Audio In	No	Input - RS232C IN	Yes(1), 4pin Phone-jack
Input - RJ45(LAN)	Yes(1)	Input - IR IN	No
Input - USB	USB2.0 Type A(2)	Output - DP Out	No
Output - Audio Out	Yes(1)	Output - Externel Speaker Out	No
Output - External Control - RS232C OUT	Yes(1), 4pin Phone-jack	Output - Externel Speaker Out - RJ45(LAN)	No
Mechanical
Bezel Color	Ashed Blue	Bezel Width	Off : 6.9/6.9/6.9/18.4 On : 2.8/12.8/12.8/19.9
Weight(Head)	-	Weight(Head+Stand)	-
Packed Weight	-	Monitor Dimension(W x H x D)	-
Monitor Dimensions with Stand(W x H x D)	-	Carton Dimensions(W x H x D) (Box outer size)	-
Handle	No	VESA™ Standard Mount Interface	300 x 300
HW Feature
HW - Internal Memory	8GB	HW - Wi-Fi - Built-in	Yes
HW - Sensor - Temperature Sensor	Yes	HW - Sensor - Auto Brightness sensor	Yes
HW - Sensor - Pixel sensor	No	HW - Sensor - Proximity Sensor	No
HW - Sensor - Current Sensor	No	HW - Power Indicator	No
HW - Local Key Operation	Yes (Power On/Off only)	HW - FAN	No
SW Feature
SW - webOS ver.	webOS6.0	SW - Embedded CMS - Local Contents Scheduling	Yes
SW - Embedded CMS - Group Manager	Yes	SW - USB Plug & Play	Yes
SW - Fail over	Yes	SW - Background Image - Booting Logo Image	Yes
SW - Background Image - No Signal Image	Yes	SW - Sync Mode - RS-232C Sync	Yes
SW - Sync Mode - Local Network Sync	Yes	SW - Multi-screen - PIP	No
SW - Multi-screen - PBP	No	SW - Screen Share	Yes
SW - Video Tag	Yes(4, Max One HDMI input)	SW - Play via URL	Yes
SW - Rotation - Screen Rotation	Yes	SW - Rotation - External Input Rotation	Yes
SW - Gapless Playback	Yes	SW - Tile Mode Setting	No
SW - Setting Data Cloning	Yes	SW - SNMP	Yes
SW - ISM Method	Yes	SW - Auto Set ID	Yes
SW - Status Mailing	Yes	SW - Control Manager	Yes
SW - 3rd Party Compatibility - Cisco certi	TBD (Oct~)	SW - 3rd Party Compatibility - Crestron Connected	Yes
SW - Power - Smart Energy Saving	Yes	SW - Power - PM mode	Yes
SW - Power - Wake on LAN	Yes	SW - Power - Network Ready	Yes
SW - Beacon	Yes	SW - HDMI-CEC	Yes
SW - SI Server Setting	Yes	SW - webRTC	Yes
SW - Pro:Idiom	Yes
Environment Conditions
Operation Temperature	0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)	Operation Humidity	10 % to 80 %
Power
Power Supply	AC 100-240V~, 50/60Hz	Power Type	Built-In Power
Power Consumption
Typ.	105 W	Max.	160 W
BTU (British Thermal Unit)	358 BTU/Hr(Typ.), 546 BTU/Hr(Max.)	Smart Enegy Saving(~70%)	73.5 W
DPM	0.5W	Power off	0.5W
Sound
Speaker	Yes
Certification
Safety	CB	EMC	FCC Class "A" / CE
ErP / Energy Star	Yes(OldErP for Jordan)/Yes	ePEAT(US only)	No
OPS Compatibility
OPS type compatible	No	OPS Power built in	No
Software Compatibility
SuperSign CMS	Yes	SuperSign Control / Control+	Yes / Yes
SuperSign WB	Yes	SuperSign Media Editor	Yes
Promota	Yes (Not available for EU/CIS)	Mobile CMS	No
Signage 365 Care	Yes
