LG UM5N-H Series – Standard UHD Display

Key Features
  • Resolution : 3,840 x 2,160 (UHD)
  • Brightness (Typ.) : 500 nit
  • Surface Treatement (Haze) : 28 %
  • Bezel : 12.4 mm (T/R/L/B)
  • Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
  • webOS Smart Platform
65"
55"
45"
ENQUIRE NOW

UHD Signage Display with LG webOS Platform and Advanced Security

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Convenient webOS Platform

The UM5N-H is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UM5N-H is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

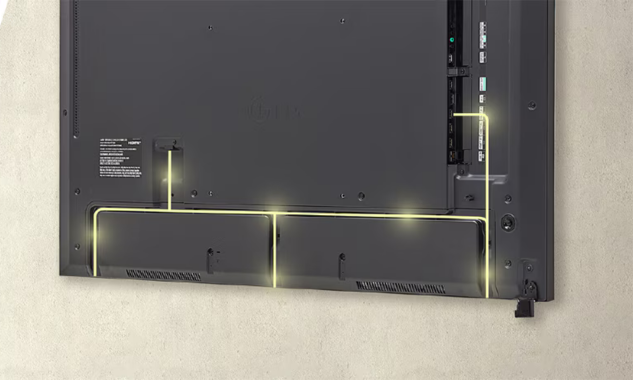

Design for Space Utilization

Designed with thin bezels and simple cable management, the UM5N-H saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

Enhanced Security Features

The UM5N-H provides security features, including LG’s Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers’ data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability

With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
  • Resolution : 3,840 x 2,160 (UHD)
  • Brightness (Typ.) : 500 nit
  • Surface Treatement (Haze) : 28 %
  • Bezel : 12.4 mm (T/R/L/B)
  • Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
  • webOS Smart Platform

UM5N-H

Specifications
Info
Product Standard (UHD) Year Y23
Month M05
Panel
Screen Size 43", 49", 55", 65" Panel Technology IPS
Back Light Type Direct Aspect Ratio 16:09
Native Resolution 3840 x 2160 (UHD) Refresh Rate 60Hz
Brightness (Typ.) 500nit (Typ.) Contrast Ratio 1,100:1
Dynamic CR 1,000,000:1 Color Gamut BT709 95%
Viewing Angle(H x V) 178 X 178 Color Depth 10bit, 1.07Billon colors
Response Time Tr : 8ms / Tf :10ms Surface Treatment(Haze) 28%
Life time 50,000Hrs (Min.) Operation Hours (Hours/Day) 24/7
Portait / Landscape Yes / Yes
Connectivity (Jack Interface)
HDMI IN Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4 DP IN Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C IN Yes(1), 4pin PhYesne-jack RJ45(LAN) IN Yes (1)
IR IN Yes (1) USB IN USB2.0 Type A(1)
HDMI Out Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP Audio Out Yes (1)
RS232C Out Yes (1), 4pin Phone-jack Daisy Chain Yes(Input HDMI, DP / Output HDMI)
Mechanical
Bezel Color Black Bezel Width T/R/L/B: 12.4mm(Even)
Weight(Head) - Weight(Head+Stand) -
Packed Weight - Monitor Dimension(W x H x D) -
Monitor Dimensions with Stand(W x H x D) - Carton Dimensions(W x H x D) (Box outer size) -
VESA™ Standard Mount Interface 300 x 300
HW Feature
Internal Memory 16GB Wi-Fi (Built-in) Yes
Temperature Sensor Yes Auto Brightness sensor Yes(IR)
Acceleration(Gyro) Sensor Yes Local Key Operation Yes
Speaker (Built-in) Yes
SW Feature
OS ver. webOS6.0 Local Contents Scheduling Yes
Group Manager Yes USB Plug & Play Yes
Fail over Yes Booting Logo Image Yes
No Signal Image Yes RS232C Sync Yes
Local Network Sync Yes PIP Yes
PBP Yes (4) Screen Share Yes
Video Tag Yes (4) Play via URL Yes
Screen Rotation Yes External Input Rotation Yes
Gapless Playback Yes Tile Mode Setting Yes (Max. 15x15)
Setting Data Cloning Yes SNMP Yes
ISM Method Yes Auto Set ID Yes
Status Mailing Yes Control Manager Yes
Cisco Certi. Yes Crestron Inside Yes
Smart Energy Saving Yes PM mode Yes
Wake on LAN Yes Beacon Yes
Network Ready Yes HDMI-CEC Yes
SI Server Setting Yes webRTC Yes
Pro:Idiom Yes
Environment Conditions
Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %
Power
Power Supply AC 100-240V~, 50/60Hz Power Type Built-In Power
Power Consumption
Power Consumption (Typ.) 145W Power Consumption (Max.) 200W
Power Consumption (British Thermal Unit) 495 BTU/Hr(Typ.), 682 BTU/Hr(Max) Power Consumption (Smart Energy Saving, ~70%) 101.5W
Power Consumption (DPM) 0.5W Power Consumption (Power Off) 0.5W
Certification
Safety CB / NRTL EMC FCC Class "B" / CE / KC
ErP / Energy Star Yes(NewErP)/Yes Carbon Trust Yes(~'23.9, CO2 Measured)
Software Compatibility
SuperSign CMS Yes SuperSign Control / Control+ Yes / Yes
SuperSign WB Yes SuperSign Cloud Yes
Mobile CMS Yes Connected Care Yes

Data Sheet

User Manual
