Rocware RB10 USB Smart Conferencing VideoBar

Key Features

USB video bar designed for small to medium enterprise meeting rooms.
4K UHD camera with 20-megapixel resolution.
Built-in digital microphone and full-range speaker.
120° wide field of view (FoV).
5x digital zoom with ±15° PTZ function.
AI-powered speaker tracking and auto framing.
Smart Gallery for dynamic screen layout adjustments.
Built-in WiFi module for BYOD and wireless screen mirroring.
Beamforming microphone with 6-meter audio pickup.
Compatible with resolutions up to 4K and backward compatible with 1080P and 720P.

Smart Conferencing VideoBar

Simple Connectivity with BYOD & BYOM

The built-in WiFi module lets participants easily join meetings with their own devices. It also supports wireless screen mirroring, allowing seamless sharing from computers to the device for a smoother collaboration experience.

4K Clarity, Always Compatible

Equipped with a 4K UHD CMOS sensor of 1/1.8 inches and 20 million effective pixels, it outputs 4K (3840×2160) UHD resolution images and is backward compatible with resolutions such as 1080P and 720P.

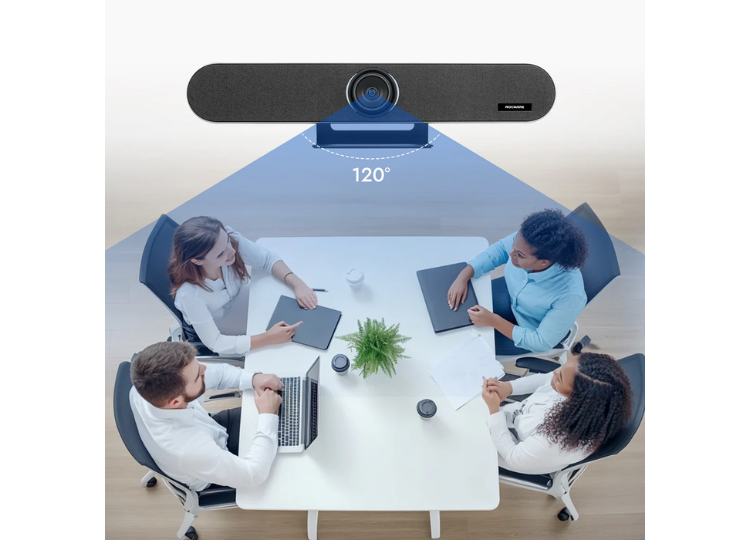

Wide-Angle Clarity with 120° FoV

The lens provides a 120° wide field of view (FoV), ensuring that the entire meeting room is captured with clarity. This wide angle allows for a comprehensive view of all participants, making it ideal for group settings and larger spaces.

Sharp Focus with 5x Zoom & ±15° PTZ

Combined with 5x digital zoom, it ensures every detail is visible, no matter the distance. With a ±15° PTZ function, the camera can easily adjust to focus on all participants, ensuring everyone is included, even if they move around the room.

Smart Speaker Tracking

The speaker tracking uses head, facial, figure, and sound recognition to follow the active speaker. It adjusts automatically to keep the speaker in focus, ensuring clear and dynamic visuals. This improves meeting engagement and interaction.

Auto Framing for Effortless Focus

The auto framing feature detects the number of participants and their movements. It automatically adjusts the camera to capture the best possible view, improving meeting efficiency by keeping everyone in frame.

Dynamic View for Seamless Collaboration

Smart Gallery uses AI to adjust the screen layout based on participants. It captures close-ups and arranges them evenly, ensuring everyone is visible. When someone speaks, their image flashes with color, enhancing communication.

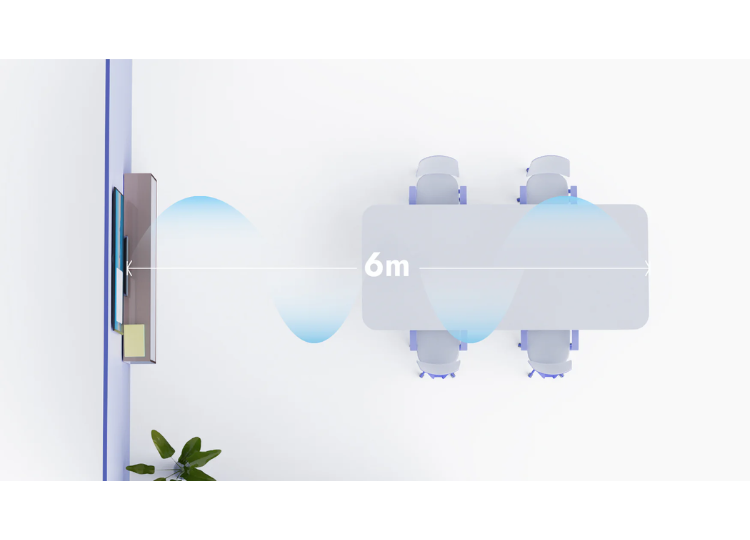

6m Audio Pickup & Clear Sound

The built-in beamforming microphone detects the speaker’s sound source and adjusts for accurate audio capture within a 6-meter range. Integrated full-range, high-fidelity speakers deliver clear and consistent remote audio.

USB video bar designed for small to medium enterprise meeting rooms.
4K UHD camera with 20-megapixel resolution.
Built-in digital microphone and full-range speaker.
120° wide field of view (FoV).
5x digital zoom with ±15° PTZ function.
AI-powered speaker tracking and auto framing.
Smart Gallery for dynamic screen layout adjustments.
Built-in WiFi module for BYOD and wireless screen mirroring.
Beamforming microphone with 6-meter audio pickup.
Compatible with resolutions up to 4K and backward compatible with 1080P and 720P.

Rocware RB10

Specifications
Camera
Video Resolution	4K@30fps, 1080P@30fps, 720P@30fps, etc.
Sensor	1/1.8 inches, CMOS, effective pixels: 20 million
Optical Lens	114° (DFOV), 105° (HFOV), 5x digital zoom, horizontal/tilt ±15
PTZ	Mechanical pan/tilt (MPTZ) + EPTZ
Digital Noise Reduction	2D & 3D Digital Noise Reduction
Signal-to-Noise Ratio	≥ 55dB
BLC	Support
USB Features
Connection Type	USB 3.0, backward compatible with USB2.0
Color Space/ Compression	MJPEG / YUY2
USB Audio	32K sampling rate, support UAC1.0
UVC PTZ Control	Support (ePTZ)
USB Video Communication Protocol	UVC 1.1
Audio
Full Range Speakers	96 dB SPL at 0.5 m
Microphone Array	Beamforming microphone, pickup distance 6 meters
Extended MIC	Support (Optional)
I/O Interface
USB 3.0	1 × USB3.0, Type-C, female connector, supports audio and video transmission, supports firmware upgrade
HDMI	1 × HDMI, supports local video display
USB 2.0	1 × USB2.0, Type-A, female, connect to USB wired expansion microphone
Power Interface	1 power interface
Remote Control	Support
Bluetooth	Bluetooth 5.3, supports Bluetooth connection to mobile phones, laptops and other devices, and transmits audio
Wifi	Wifi 6, supports BYOM wireless transmission and BYOD wireless screen projection (extra screen projection device is required)
Network Port	1 × RJ45, connect to network port expansion microphone, support PoE power supply 1 × RJ45, 10/100M adaptive Ethernet port, supports network transmission of audio and video
Other specifications
Installation	Supports multiple installation options such as desktop, wall, TV, etc.
Standard Cables	USB cable
Security	Anti-theft lock jack
Power Supply
Operating Temperature	0°C ~ 40°C
Dimensions (L x H x D)	600mm135mm117mm
Stored Temperature	-40°C ~ 60°C
Net Weight	2.5 Kg
