Rocware RC841U Zoom Certified 4K PTZ Camera

Key Features

Sony’s 1/2.5 inch CMOS sensor with 4K quality at 30 fps.
12X lossless optical zoom.
Horizontal viewing angle of 80.8°.
AI humanoid tracking.
Auto-framing for individuals or groups.
Compatible with USB Cascade Microphones.
Compatible with HiFi Speakers.
Suitable for 60-100㎡ conference rooms.

4K Video Conferencing PTZ Camera

4k-level Image Quality

Equipped with the new generation 4K CMOS sensor from SONY with a maximum pixel count of 8 million, this camera can achieve ultra-high resolution video images of 4K (3840×2160), meeting the high image quality requirements of various conference rooms.

12x Optical Zoom

Equipped with an 80.8° wide-angle lens, this camera features 12x optical zoom and 16x digital zoom, enabling clear capture of details both near and far in the conference room with no distortion at the edges of the image.

Ai-assisted Shooting

This camera is equipped with built-in video AI algorithms that can recognize the positions of participants in the conference room and automatically adjust the camera angle to obtain the best composition and framing of the image. It can also be set to track and follow a specific subject as they move during the conference.

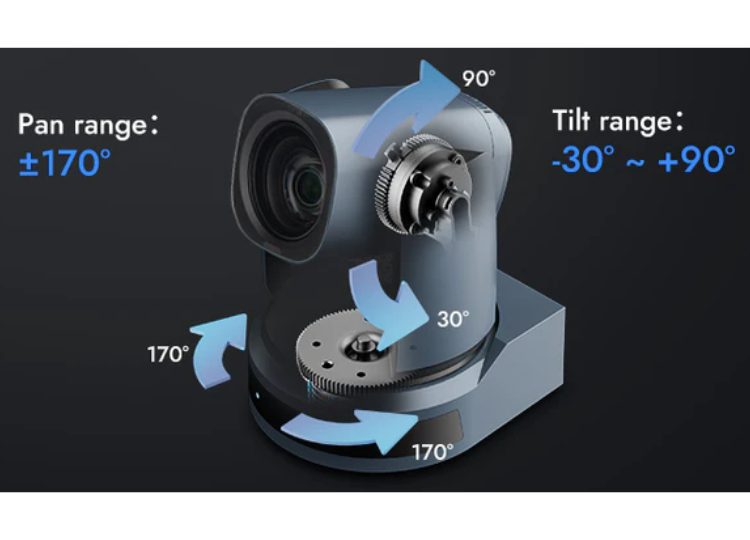

Silent Mechanical PTZ

Equipped with a silent mechanical PTZ, this camera has a ±170° horizontal rotation range and a -30°~+90° vertical rotation range, fully covering the entire conference room space and leaving no blind spots, even in corner positions.

Ultra-high Signal-to-noise Ratio

Equipped with an ultra-high signal-to-noise ratio CMOS image sensor, this camera effectively reduces image noise in low-light conditions. At the same time, it applies 2D and 3D noise reduction algorithms to maintain a clean and clear image in ultra-low light conditions, with a signal-to-noise ratio of over 55dB.

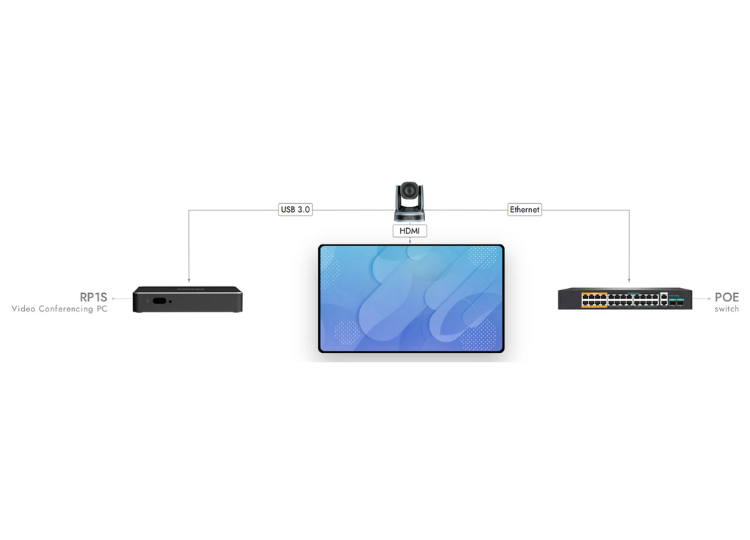

Compatible with Multiple Terminals

This camera supports HDMI, USB3.0, and network interfaces to simultaneously output 4K ultra-high definition video streams, making it compatible with various conference terminals that have different interface requirements.

Sony’s 1/2.5 inch CMOS sensor with 4K quality at 30 fps.
12X lossless optical zoom.
Horizontal viewing angle of 80.8°.
AI humanoid tracking.
Auto-framing for individuals or groups.
Compatible with USB Cascade Microphones.
Compatible with HiFi Speakers.
Suitable for 60-100㎡ conference rooms.

Rocware RC841U

Specifications
Camera
Signal :	HDMI: 4KP30fps,4KP25,1080P30,1080P25
Sensor:	1/2.5", CMOS,
effective pixels:	8.51 million
Scanning method:	Line by line
lens:	12x, f = 3.47mm ~41.65mm, F 1.84 ~ F 3.72
Digital zoom:	16x
Minimum illumination:	0.5Lux @ (F1.8, AGC ON)
shutter:	1/30s ~ 1/10000s
White balance:	Automatic, indoor, outdoor, one-touch, manual, specify the color temperature
Backlight compensation:	support
Digital noise reduction:	2D & 3D digital noise reduction
Signal-to-noise ratio:	≥55dB
Horizontal field of view:	80.8° ~ 7.5°
Vertical field of view:	49.9° ~ 4.3°
Pan range:	±170°
Tilt range:	-30° ~ +90°
Pan speed range:	2.7° ~ 35.7°/s
Tilt speed range:	2.7° ~ 31.5°/s
Flip horizontally, vertically:	support
Image freezes:	support
Number of preset:	255
Preset accuracy:	0.1°
USB features
OS Support:	Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color space/compression：	YUY2/ MJPEG/ H.264
Video format：	YUY2 (iso model): Max: 1080P@30fps MJPEG: Max: 2160P@30fps H.264 AVC: Max: 2160P@30fps H.264 SVC: Max: 2160P@30fps
USB audio:	support
USB video communication:	support
UVC PTZ control:	support
IPC features
Video encoding standards:	H.264/MJEPG
Video stream:	The first stream, the second stream
The first stream resolution:	3840x2160,1920x1080,1280x720,1024x576,960x540,640x480,640x360
The second stream resolution:	1920x1080,1280x720,1024x576,720x576, 720x480,720x408,640x360,480x270,320x240,320x180
Video bit rate:	32Kbps ~ 102400Kbps
Bit rate control:	Variable bit rate, fixed bit rate
Frame rate:	50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio compression standards:	AAC
Audio bit rate:	96Kbps, 128Kbps, 256Kbps
Support Agreement:	TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, multicast
I/O
USB:	USB 3.0, TypeC* 1
HD Output:	HDMI 1.4b *1
Network interface:	RJ45：10M/100M *1
Audio interface:	Line In, 3.5mm *1
Communication interface:	RS232 In: *1
Power connector:	DC 12V / PoE(802.3af)
General specifications
nput voltage:	DC 12V / PoE(802.3af)
Input current:	12V 1A
Operating temperature:	-10°C ~ 40°C
Storage temperature:	-40°C ~ 60°C
power consumption:	12W
Mean time between failures:	>30000 hours
size:	142mm152mm176mm
net weight:	1.5Kg
