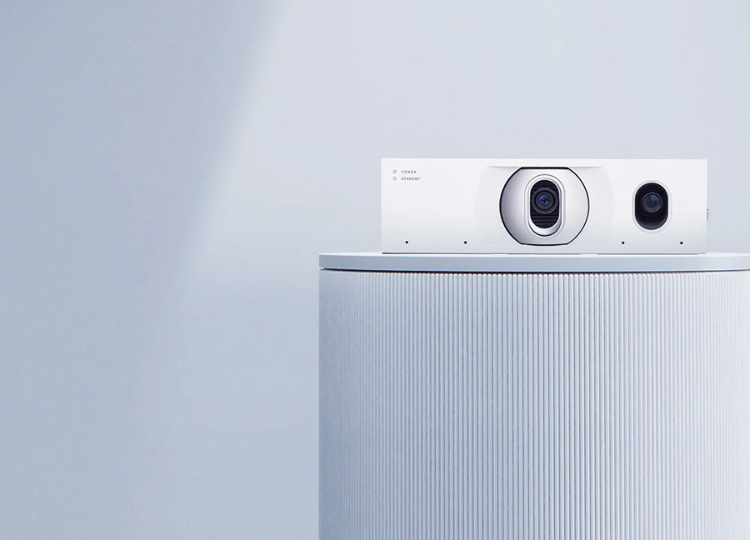

Rocware RC051 – Educational 4K Smart Tracking Camera

Key Features

DUAL-LENS
ULTRA-CLEAR CLOSE-UP
MINI PTZ
INTELLIGENT TRACKING
AI SMART DIRECTOR
AI BEHAVIOR ANALYSIS
MULTIPLE OUTPUT INTERFACE

Adapting to New Education and Learning Needs

Optimizing In-Classroom Education Experiences

Enhance traditional classroom settings with AI-enhanced technologies that automate view switching and focus, enabling teachers to concentrate on teaching.

Learning Anywhere: Online and Hybrid Accessibility

Empower students and teachers to connect seamlessly from anywhere, ensuring equal learning opportunities through our flexible, hybrid solutions.

Tailored for Any Training Environment

Our versatile solutions adapt to any educational scenario, supporting diverse training needs with customizable, easy-to-integrate technologies.

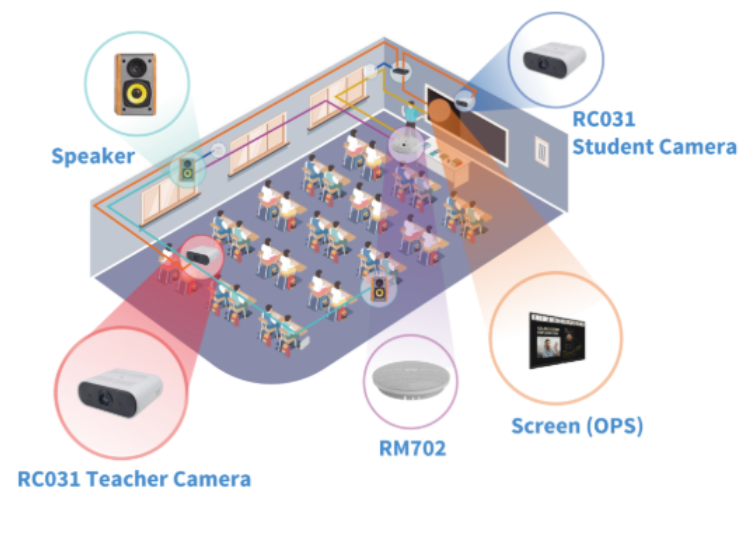

Hybrid Classrooms

Online Lectures and Webinars

Virtual Labs and Demonstrations

Remote Tutoring & Office Hours

Distance Learning Programs

DUAL-LENS
ULTRA-CLEAR CLOSE-UP
MINI PTZ
INTELLIGENT TRACKING
AI SMART DIRECTOR
AI BEHAVIOR ANALYSIS
MULTIPLE OUTPUT INTERFACE

Rocware RC051

Specifications
CAMERA SPEC OF CLOSE-UP CAMERA
Sensor	1/2.7", CMOS, Effective pixel:8.29MP
Scanning Mode	Progressive
Type of Lens Mount	M12
Student Close-up Lens	f=7.37mm, Horizontal FOV: 43°
Teacher Close-up Lens	f=12.49mm, Horizontal FOV: 26°
f=12.49mm, Horizontal FOV: 26°	2x
Minimum Illumination	0.5Lux
Shutter	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
Digital Noise Reduction	2D&3D Digital Noise Reduction
Backlight Compensation	Support
Pan Angle	±40°
Tilt Angle	+5° ~ -30°
Maximum Rotation Speed	Student Camera: Pan Speed 60°/s,Tilt Speed 30°/s Teacher Camera: Pan Speed 30°/s,Tilt Speed 30°/s
Image Flip	Support
Image Freeze	Support
Preset Position	255
Preset Accuracy	0.5°
CAMERA SPEC OF PANORAMIC CAMERA
Sensor	1/2.7", CMOS, Effective pixel:8.29MP
Scanning Mode	Progressive
Type of Lens Mount	M12
Student Close-up Lens	f=2.2mm, Horizontal FOV: 110°
Teacher Close-up Lens	f=2.2mm, Horizontal FOV: 110°
Minimum Illumination	0.5Lux
Shutter	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
Digital Noise Reduction	2D&3D Digital Noise Reduction
Backlight Compensation	Preset Accuracy
Tilt Angle	+0° ~ -24°
Image Flip	Support
Image Freeze	Support
AUDIO
Preset Accuracy	4 Microfen array¹, 100Hz to 16kHz frequency response
Simulation Audio Input	1 x LINE In
Simulation Audio Output	1 x LINE Out
Digital Audio Interface	1 x USB audio input output 1 x network audio input output, supports 1588 -based audio clock synchronization
USB SPEC
Operating System Supported	Windows® 7 ( Only support 1080P and below ), Windows 8.1 and above version; macOS ™ 10.10 and above version; Google ™ Chromebook ™ Version 29.0.1547.70 and above version; Linux ( Need to support UVC)
Hardware Requirements	2.4 GHz Intel® Core 2 DUO processor or higher; 2.4 GHz Intel® Core 2 DUO processor or higher; 2.4 GHz Intel® Core 2 DUO processor or higher;
Color System / Compression	YUY2/MJPEG/H.264
Video Format	Maximum 4K and other different frame rates and resolution video formats
USB Video Communication Protocol	UVC 1.1
Support	The maximum 48K sampling rate, supports UAC1.0
UVC PTZ Control	Support
NETWORK SPEC
Video Compression	H.265 / H.264 / MJPEG
Video Stream	First Stream, Second Stream, Third Stream, Fourth Stream
First Stream Resolution	3840x2160,1920x1080, 1280X720, etc.
Second Stream Resolution	2880x1620, 1920x1080, 1280X720, etc.
Third Stream Resolution	1920X1080,1280X720,1024x576, etc.
Fourth Stream Resolution	1920x1080, 1280x720,1024x576, etc.
Video Bit Rate	32Kbps ~ 16384Kbps
Bit Rate Type	VBR, CBR
Frame Rate	25/30fps
Audio Compression	AAC/G.711A
Audio Bit Rate	96Kbps, 128Kbps, 256Kbps
Support Protocols	TCP/IP, HTTP, HTTPS, NDI, SRT, RTSP, RTMP, Onvif, DHCP, GB28181, Multicast, etc.
I / O
USB Interface	1x USB 3.0; Type-C
Network Interface	1 x RJ45: 10M / 100M adaptive Ethernet; PoE(802.3af), Support NDI¹
Audio Interface	1 x LINE Out: 3.5mm 1 x LINE Out: 3.5mm
Power Interface	DC005 (DC 12V)
Reset Button	RESET
Infrared Interface¹	Support
Indicator Light	POWER ,STANDBY
GENERIC SPEC
Input Voltage	DC 12V / PoE (802.3af)
Input Current	1A (Max)
Operating Temperature	-10°C ~ 40°C
Storage Temperature	-40°C ~ 60°C
Power Consumption	12W (Max)
Dimension	242mm (W) × 86mm (D) × 70mm (H)
Net Weight	0.62kg
No Failure Time	30000h
