Rocware RM702 AI-Enhanced Conference Array Microphone

Key Features
  • USB microphone with POE Cascade support.
  • Flexible for huddle and middle conference rooms.
  • Built-in mic array.
  • Supports blind beamforming.
  • Accurate human voice pickup at long distances.
  • Automatic environmental noise reduction.
65"
55"
45"
ENQUIRE NOW

Cascading Omnidirectional Digital Array Microphone

DIGITAL MICROPHONE ARRAY

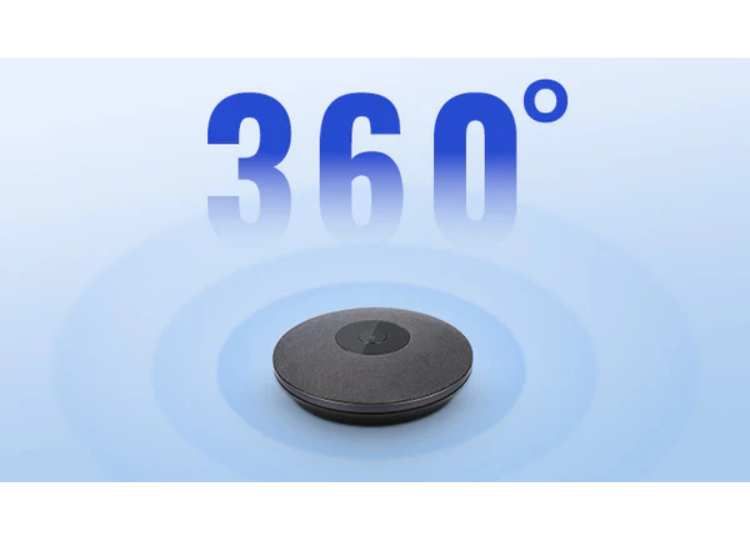

It features a high signal-to-noise ratio ring-shaped microphone array design, achieving 360° omnidirectional audio pickup. This allows speakers to freely move within a larger range in the room, freeing them from constraints.

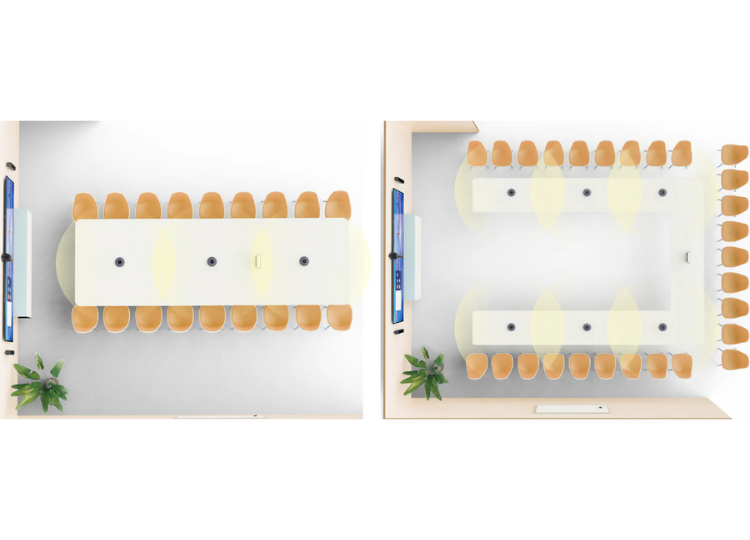

PoE CASCADING PICKUP

Each individual microphone has an effective pickup distance of 3 meters, and up to 6 microphones can be cascaded using Power over Ethernet (PoE), enabling distributed audio pickup and uniform coverage in medium to large conference rooms.

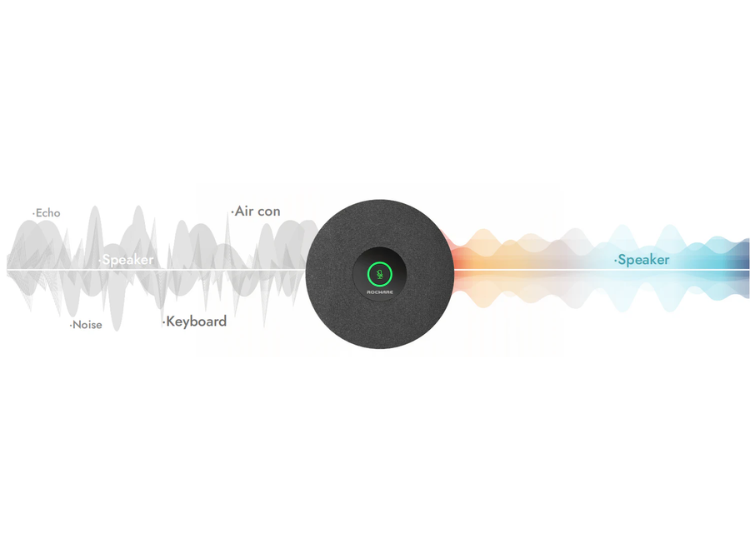

AI AUDIO ALGORITHMS

It utilizes blind beamforming technology to automatically locate the sound source and capture it accurately. It adapts to the acoustic environment and achieves voice enhancement, providing better anti-interference capabilities.

MULTIPLE INTERFACE OUTPUTS

It is equipped with standard USB 2.0 and auxiliary audio interfaces, supporting plug-and-play functionality for both digital and analog audio applications.

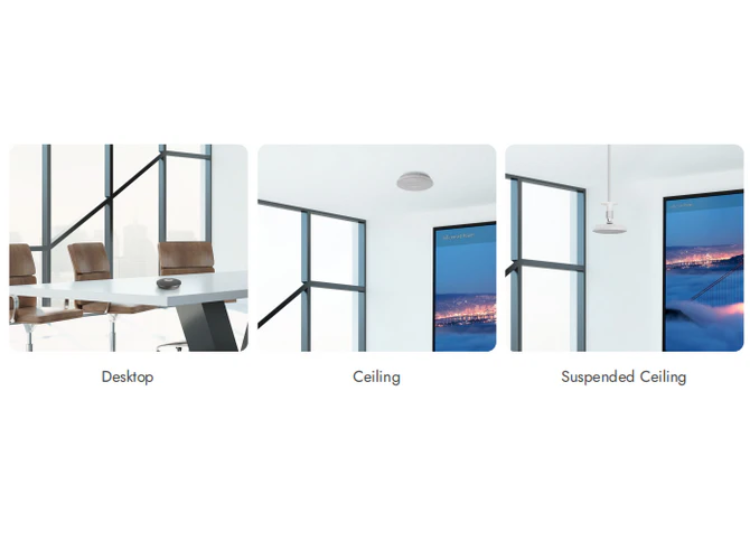

FLEXIBLE INSTALLATION OPTIONS

It supports various installation methods such as desktop placement, ceiling mounting, and suspension. This allows for flexible and quick deployment, reducing maintenance costs.
  • USB microphone with POE Cascade support.
  • Flexible for huddle and middle conference rooms.
  • Built-in mic array.
  • Supports blind beamforming.
  • Accurate human voice pickup at long distances.
  • Automatic environmental noise reduction.

Rocware RM702 Desktop

Specifications
General Parameters
Microphone Type : Weight : 370 g
Microphone Array : Built-in 6 high SNR microphones form a ring array, 360° omnidirectional pickup
Sensitivity : -38 dBFS
SNR : Weight : 370 g
Frequency response : 50Hz - 16kHz
Sampling Rate : 32K sampling, HD broadband audio
Pickup distance : 3 meters pickup
Noise suppression : Support
Gain control : Support
Echo cancellation : Support
Cascade function
Cascade Mode : POE network cable
Number of cascades : 6
General Specifications
Power supply mode : POE cascade 48V power supply, support IEEE 802.3 at standard / USB 5V 500mA (single unit)
Support system : Windows / Mac / Linux
Installation : Desktop, ceiling
Size : Φ 170 mm * H 40 mm
Weight : 370 g

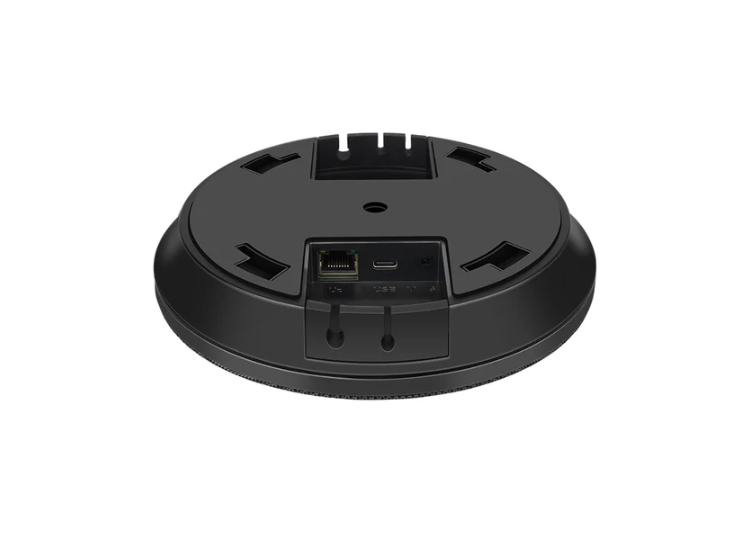

Hardware interface
Network port : RJ45 network port
USB interface : USB audio interface (Type-C),UAC1.0 protocol, audio datacommunication, software upgrade and parameter configuration
Analog audio : AUX1, AUX2 linear audio input and output

Data Sheet

User Manual
