LG UH7N-E Series – UHD Signage 700nits

Key Features
  • Resolution : 3,840 x 2,160 (UHD)
  • Brightness (Typ.) : 700 nit
  • Surface Treatement (Haze) : 28 %
  • Bezel : 8.9 mm (T/R/L), 12.9 mm (B)
  • Interface : HDMI(2) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
  • webOS Smart Platform
65"
55"
45"
ENQUIRE NOW

UHD Signage Display with LG webOS Platform and Advanced Security

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

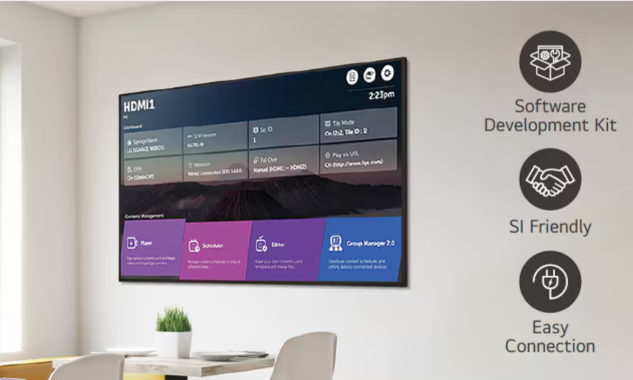

Convenient webOS Platform

The UH7N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Design for Space Utilization

Designed with thin bezels and simple cable management, the UH7N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket. Bezels accessories can also be used to convert it into an art frame, making it a stylish interior element that matches customers’ interior spaces.

Durability that Provides Reliability

Optimized for business environments, the UH7N-E is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

Sustainability

Recycled resins are used to manufacture back covers for digital signage product* and LG plans to expand this practice to other models as well. In addition, recycled cardboard was partially used to produce packaging materials, and the printing information on the packaging materials was written by only black ink.
  • Resolution : 3,840 x 2,160 (UHD)
  • Brightness (Typ.) : 700 nit
  • Surface Treatement (Haze) : 28 %
  • Bezel : 8.9 mm (T/R/L), 12.9 mm (B)
  • Interface : HDMI(2) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
  • webOS Smart Platform

UH7N-E

Specifications
Info
Product Standard (UHD) Year Y24
Month M09
Panel
Screen Size (Inch) 86 Panel Technology ADS
Back Light Type Edge Aspect Ratio 16:9
Native Resolution 3840 x 2160 (UHD) Refresh Rate 120Hz
Brightness 700nit (Typ.) Contrast Ratio 1,200:1
Dynamic CR 1,000,000:1 Color gamut BT709 95%
Viewing Angle (H x V) 178 x 178 Color Depth (Number of Colors) 1.07G (8bits + FRC)
Response Time 8m (G to G) Surface Treatment (Haze) 25%
Life time 50,000Hrs (Min.) Operation Hours (Hours/Day) 24/7
Portait / Landscape Yes / Yes
Connectivity (Jack Interface)
HDMI IN Yes(2), 3840x2160@60Hz, HDCP 2.2/1.4 DP IN Yes(1), USB-C(DP Alternate mode) shared , 3840x2160@60Hz, HDCP 2.2/1.3
RS232C IN Yes (1), 4pin Phone-jack RJ45(LAN) IN Yes (1)
IR IN Yes (1) USB IN USB2.0 Type A(2), USB2.0 Type C ((1), without PD funtion)
Audio Out Yes (1) RS232C Out Yes (1), 4pin Phone-jack
IR Out No (Support IR daisy chain via RS232C IN/OUT)
Mechanical
Bezel Color Black Bezel Width 13.4 mm (Even)
Weight (Head) - Packed Weight
Monitor Dimensions (W x H x D) - Carton Dimensions (W x H x D) -
Handle - 300 x 300 300 x 300
HW Feature
Internal Memory (eMMC) 16GB Wi-Fi/BT (Built-in) Yes
Temperature Sensor Yes Auto Brightness sensor Yes(IR)
Acceleration(Gyro) Sensor Yes Local Key Operation Yes
SW Feature
OS Ver. (webOS) webOS6.0 Local Contents Scheduling Yes
Group Manager Yes USB Plug & Play Yes
Fail over Yes Booting Logo Image Yes
No Signal Image Yes RS232C Sync Yes
Local Network Sync Yes PIP Yes
PBP Yes (4) Screen Share Yes
Video Tag Yes (4) Play via URL Yes
Screen Rotation Yes External Input Rotation Yes
Gapless Playback Yes Tile Mode Setting Yes (Max. 15x15)
Setting Data Cloning Yes SNMP Yes
ISM Method Yes Auto Set ID Yes
Status Mailing Yes Control Manager Yes
Cisco Certification (TBD) Crestron Connected Yes
Smart Energy Saving Yes PM mode Yes
Wake on LAN Yes Network Ready Yes
Beacon Yes HDMI-CEC Yes
SI Server Setting Yes webRTC Yes
Pro:Idiom Yes
Environment Conditions
Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %
Power
Power Supply AC 100-240V~, 50/60Hz Power Type Built-In Power
Power Consumption
Typ. 145W Max. 200W
IEC62087 (Typ) 130W BTU (British Thermal Unit) 0 BTU/Hr(Typ.), 0 BTU/Hr(Max)
Smart Enegy Saving (70%) 101.5 DPM 0.5W
Power off 0.5W
Sound
Speaker (Built-in) Yes (10W X 2)
Certification
Safety CB / NRTL EMC FCC Class "B" / CE / KC
ErP / Energy Star Yes(NewErP)/Yes ePEAT(US only) Yes
Software Compatibility
SuperSign CMS Yes SuperSign Control+ Yes / Yes
SuperSign WB Yes SuperSign Cloud Yes
Mobile CMS Yes Connected Care Yes
